Description

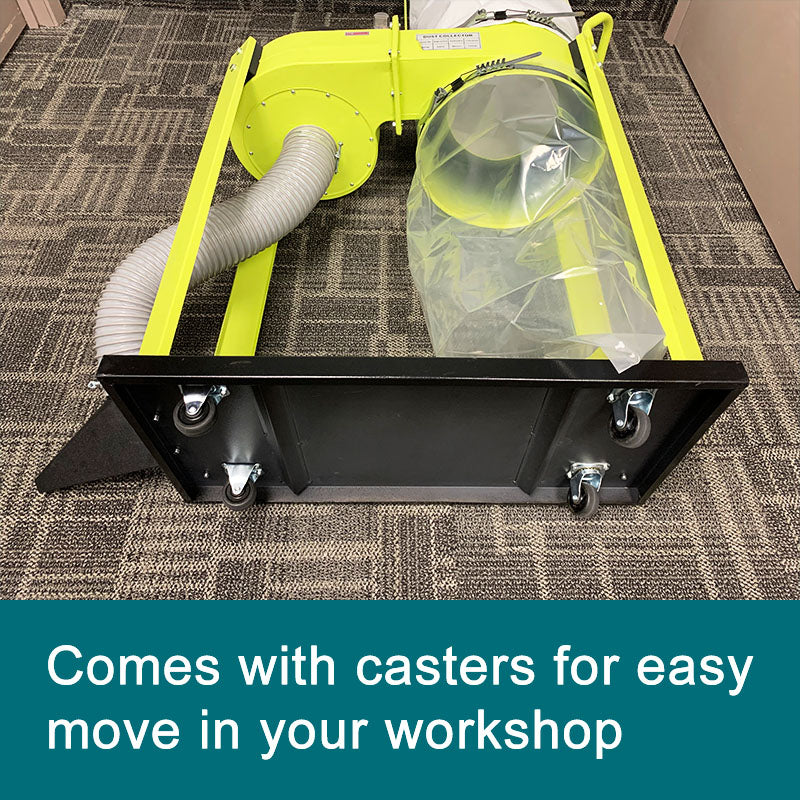

An economical extractor for small home workshop use. The 9" diameter impeller is capable of removing dust from a single machine at any one time creating a normal volume of dust - such as a table saw, bandsaw, sanders, and lathes. It comes standard on a base with casters for easy portability, as well as a needle felt filter bag and plastic collector bag. This extractor has found its way into thousands of workshops around Canada due to its great value-for-money and reliability.
Features:

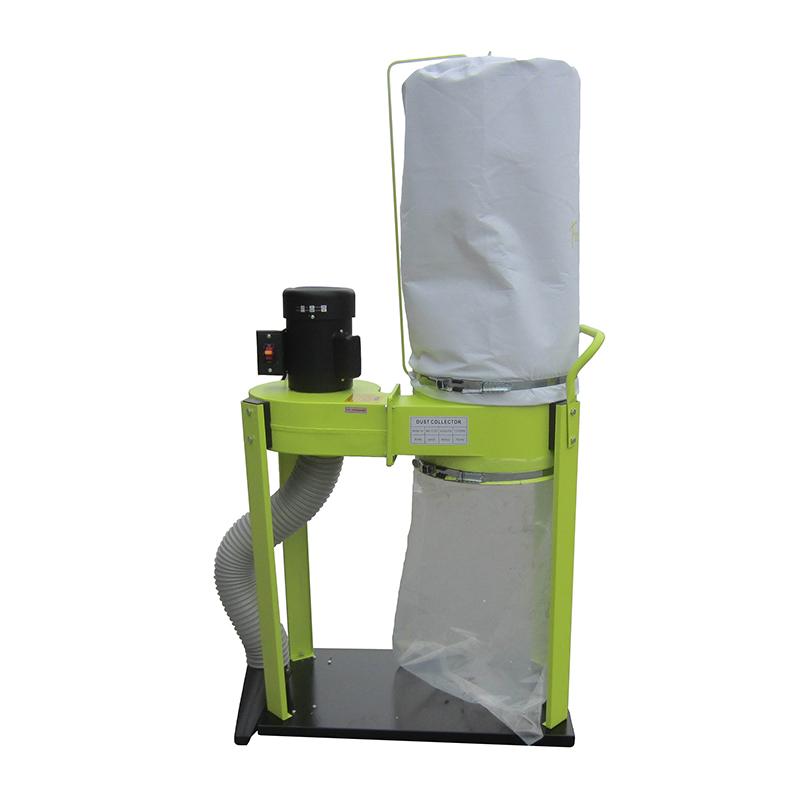

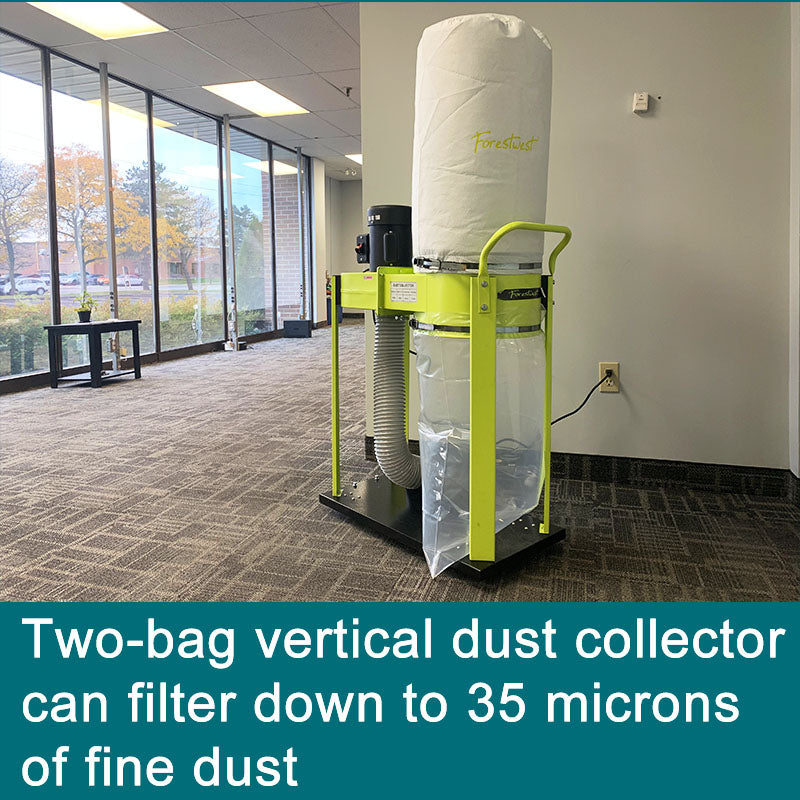

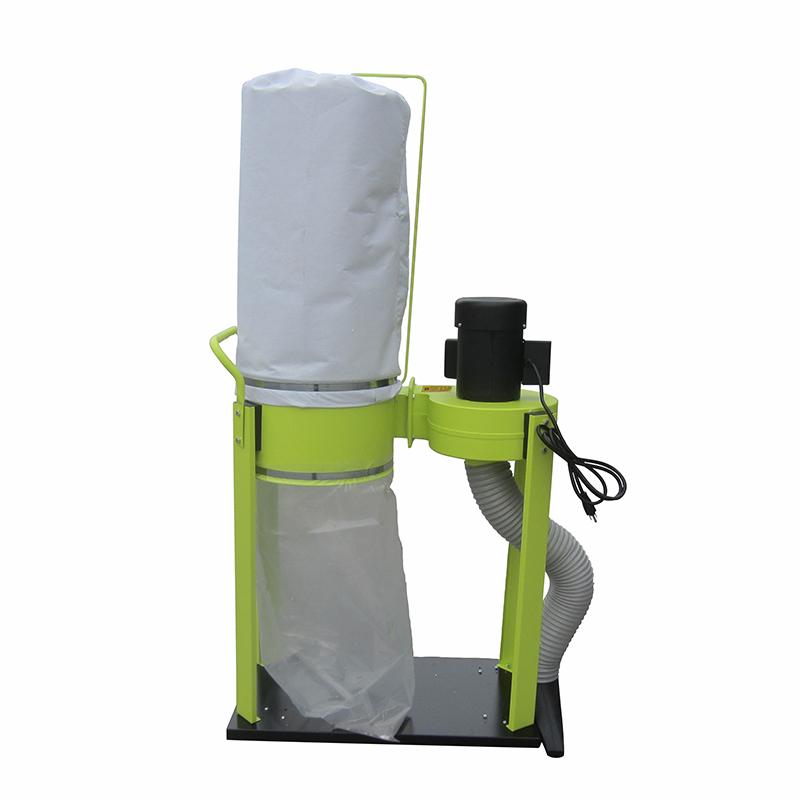

- Two-bag vertical dust collector.

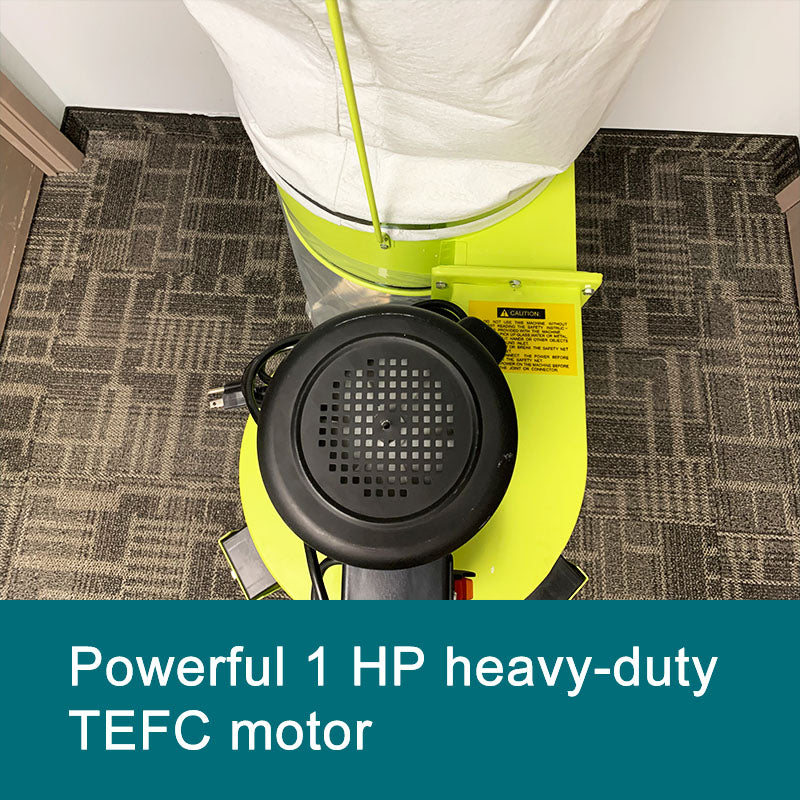

- Powerful 1 HP heavy-duty TEFC motor and solid construction to effectively handle the collection of wood chips and sawdust.

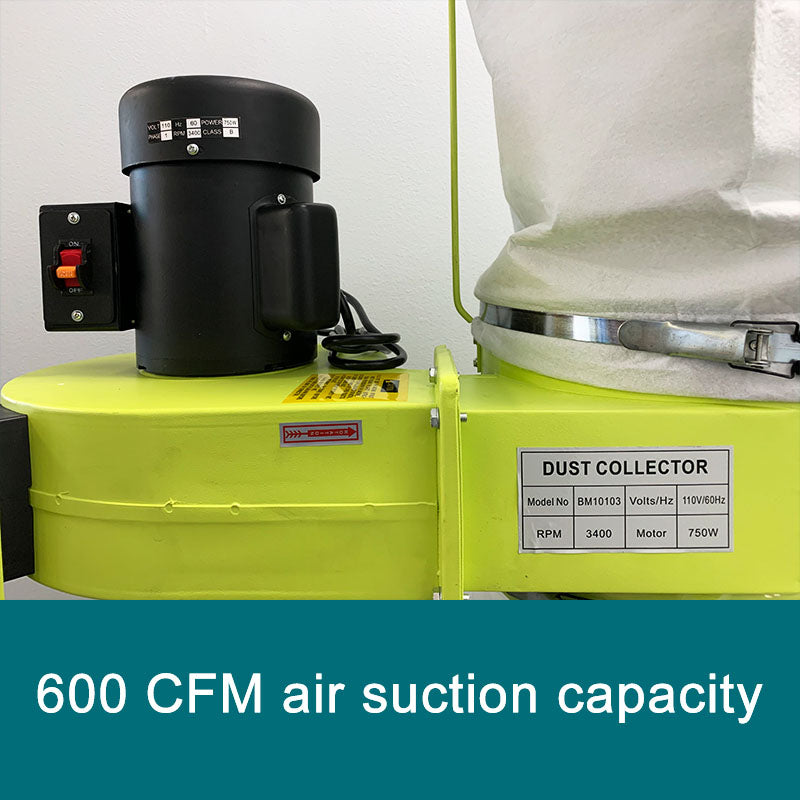

- 600 CFM air suction capacity.
- The filter bag can filter down to 35 microns of fine dust.

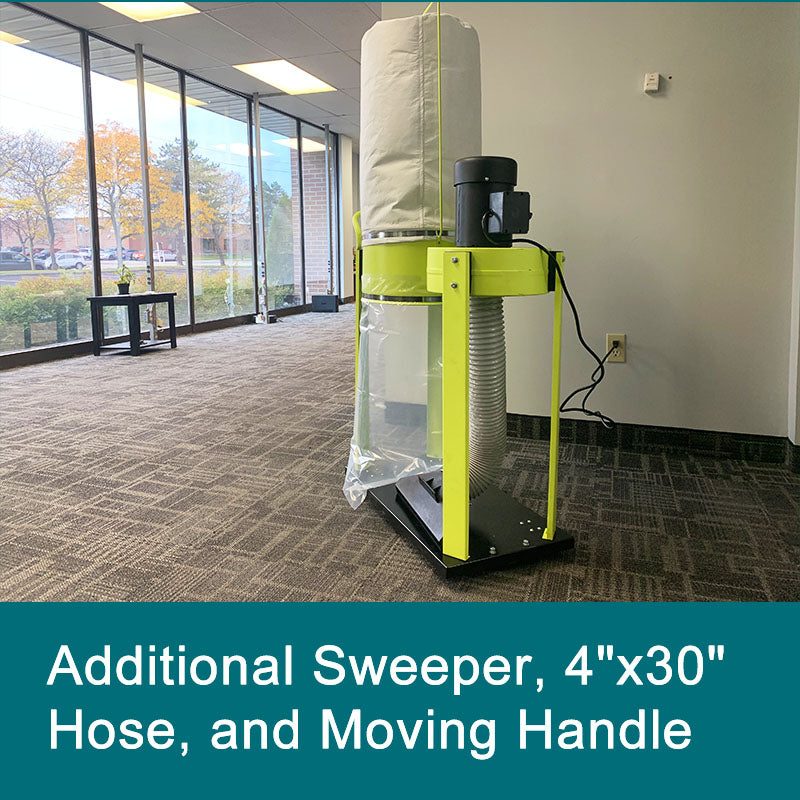

- Additional Sweeper, 4"x30" Hose, and Moving Handle.
Specifications:
| Model | FORESTWEST 10103 |
| Motor | 1HP, 110V, TEFC |
| Air Flow | 600CFM |
| Static Pressure (Inch of Water) | 4" |
| Fan Diameter | 9" |
| Inlet Diameter | 1 x 4" |
| Bag Diameter | 14-5/8" |
| Bag Height | 25-1/4" |
| Bag Capacity | 57L (2CF/ 15Gal) |
| Net Weight/ Gross Weight | 66 lbs/ 78 lbs |
| Assembled Size | 26" x 17" x 62" |
| Packing Size | 30" x 18" x 19" |
| Warranty | 1 Year |
