Description

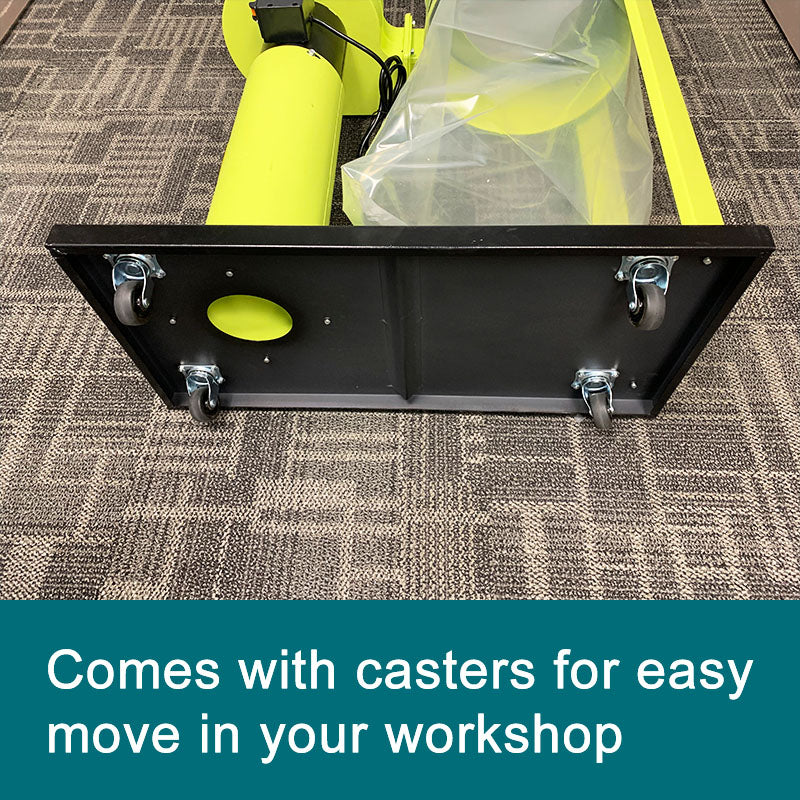

An economical extractor for small home workshop use. The 9" diameter impeller is capable of removing dust from a single machine at any one time creating a normal volume of dust - such as a table saw, bandsaw, sanders, and lathes. It comes standard on a base with casters for easy portability, as well as a needle felt filter bag and plastic collector bag. This extractor has found its way into thousands of workshops around Canada due to its great value-for-money and reliability.
Features:

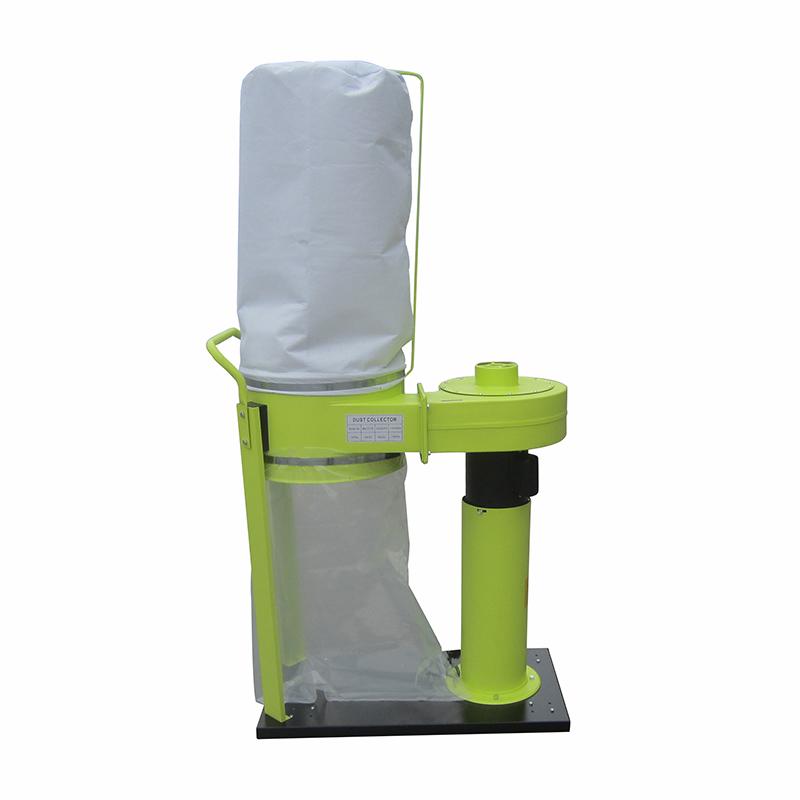

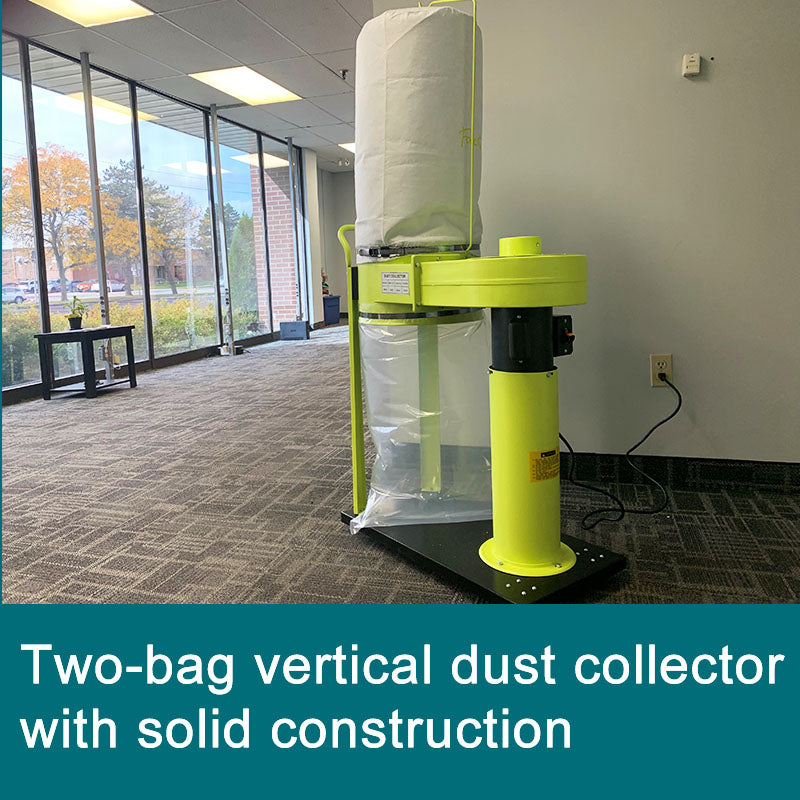

- Two-bag vertical dust collector.

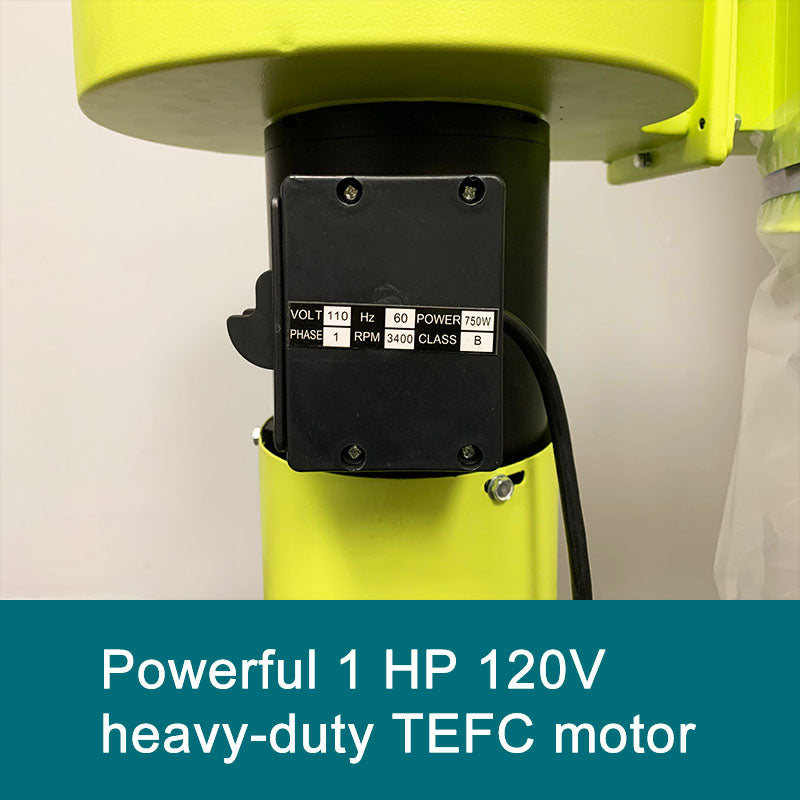

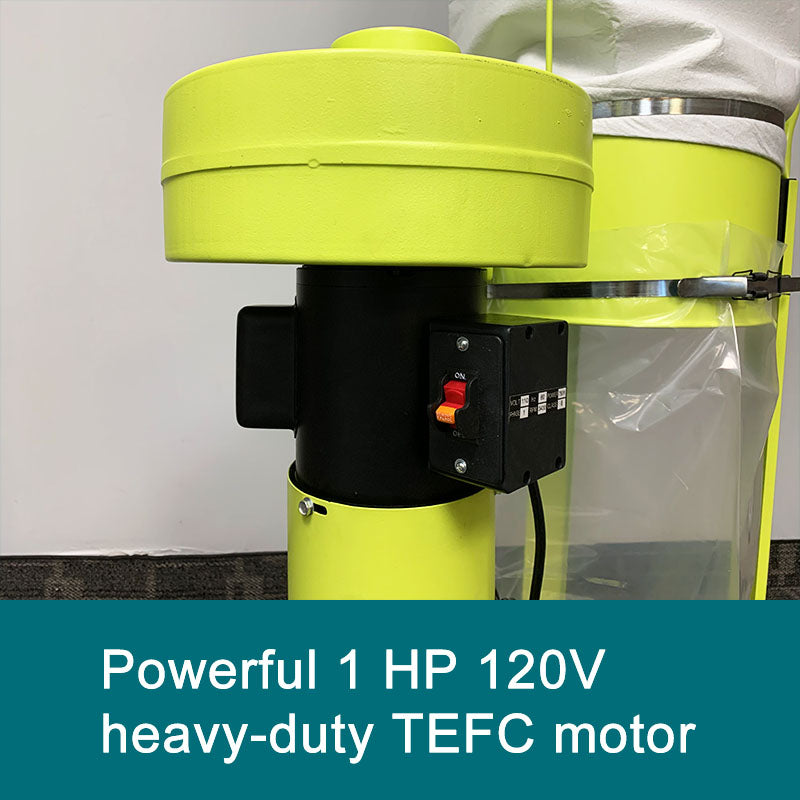

- Powerful 1 HP 120V heavy-duty TEFC motor and solid construction to effectively handle the collection of wood chips and sawdust.

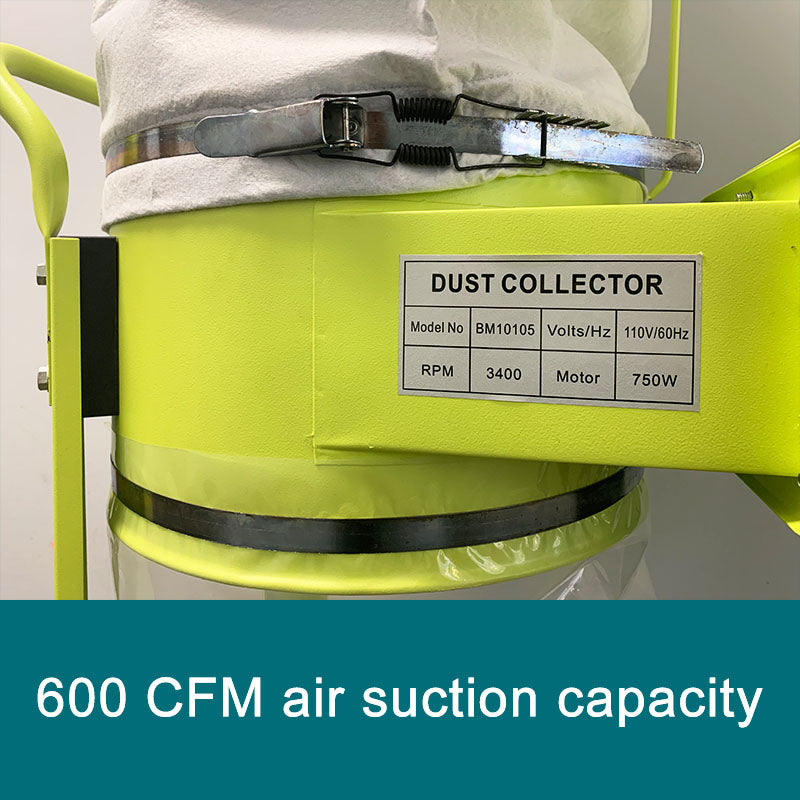

- 600 CFM air suction capacity.

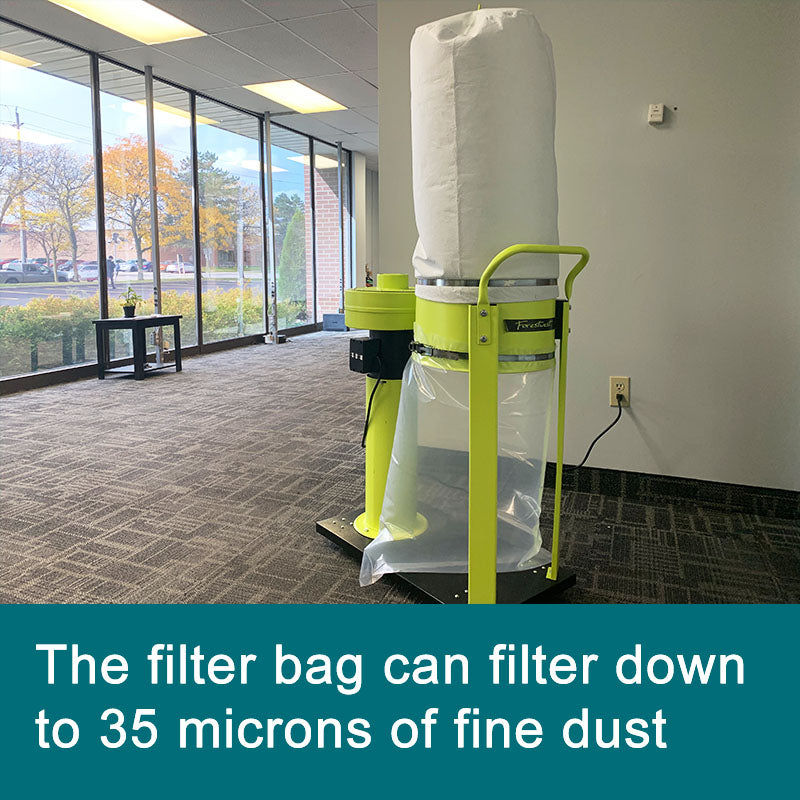

- The filter bag can filter down to 35 microns of fine dust.
Specifications:
| Model | FORESTWEST 10105 |
| Motor | 1HP, 110V, TEFC |
| Air Flow | 600CFM |
| Static Pressure (Inch of Water) | 4" |
| Fan Diameter | 9" |
| Inlet Diameter | 1 x 4" |
| Bag Diameter | 14-5/8" |
| Bag Height | 25-1/4" |
| Bag Capacity | 57L (2CF/ 15Gal) |
| Net Weight/ Gross Weight | 66 lbs/ 78 lbs |
| Assembled Size | 26" x 17" x 62" |
| Packing Size | 30" x 18" x 19" |
| Warranty | 1 Year |
Shipping Cost
Want to save more on the shipping? Please contact us if:
-
You have commercial address with loading dock
-
You'd like to pick up at carrier's depot
Customer Reviews
5.0 Based on 1 Reviews
Write a Review Filter Reviews:
O
11/13/2020
olivier
CanadaI recommend this product
Excellent small DC
Excellent small DC. Its very quiet. I think much more so than i expected. Its a tad smaller than I thought it would be but it does ok. Actually if size is a big concern this is a plus.The power is fine for using one machine at a time and the bag holds quite a bit. For now this works great. I'm sure I will be getting a larger one when I get a couple larger machines and install a dust system, but for right now with just me and one machine in use at a time and also a small Grizzly overhead fine dust filter this little guy does the trick and the garage stays pretty clean. Good buy I highly recommend.
