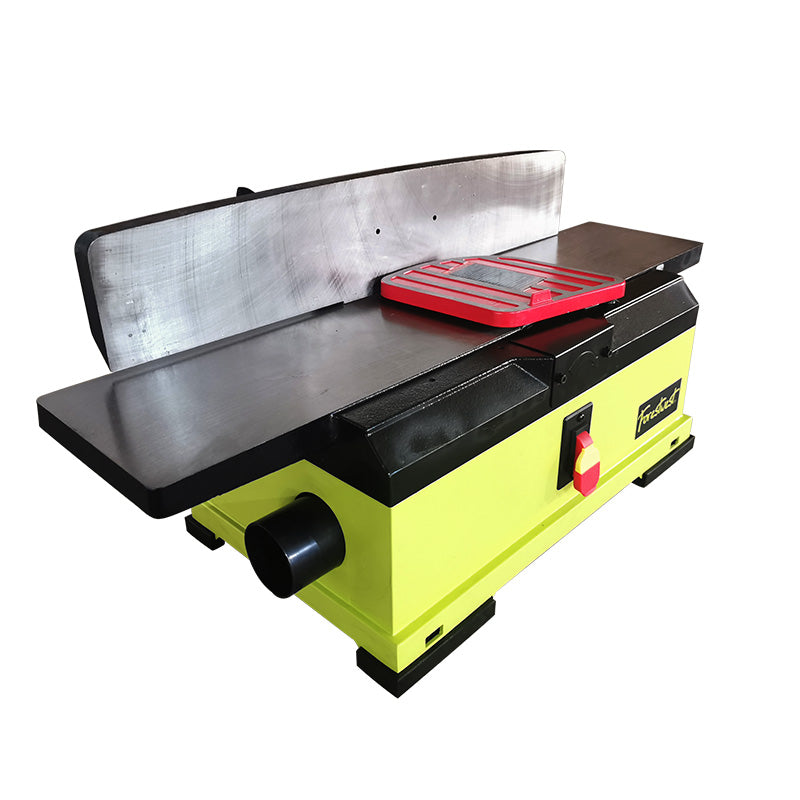

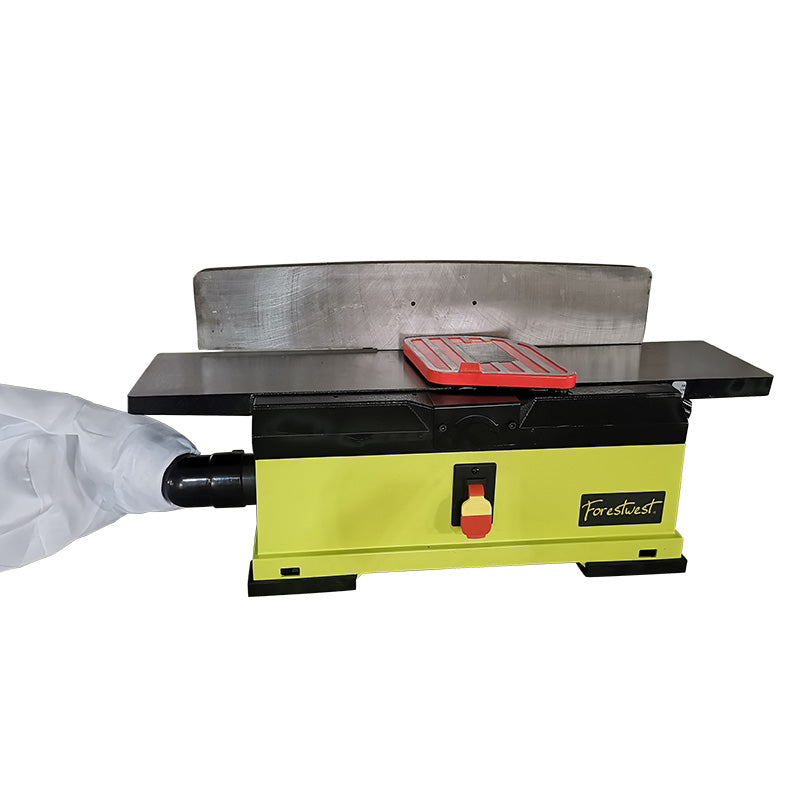

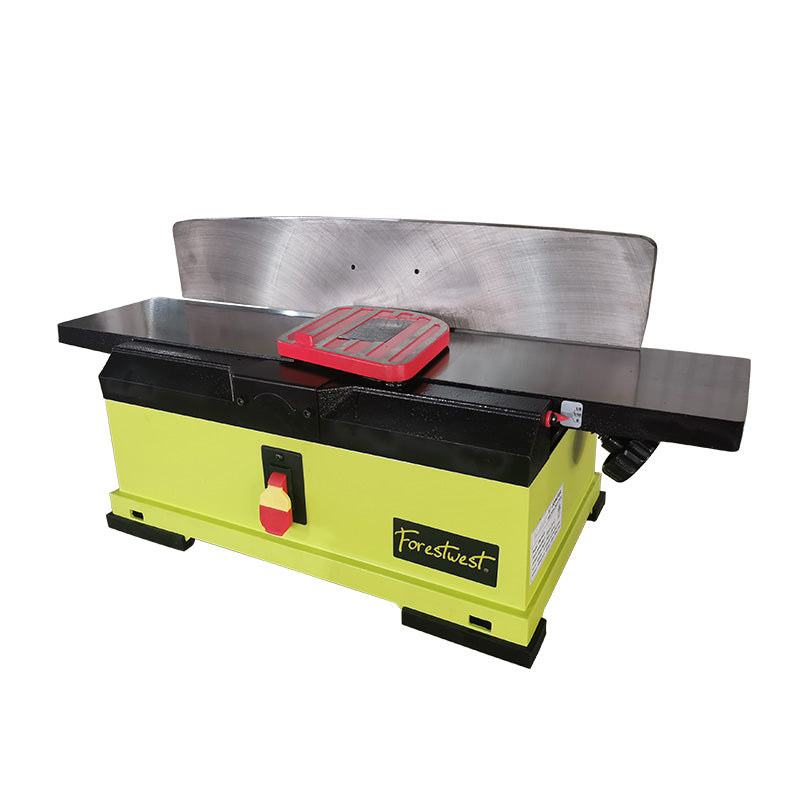

FORESTWEST 10505, 6" 1.5HP Cast Iron Jointer with Built-in Dust Chute & Stock Indicator


3 reviews
Price:
Sale price$626.00

Description

This Forestwest 6" benchtop jointer is perfect for use in compact workshops and on site. And whilst the machine is small, it is not small on features. The body is made of plate steel and features a cast iron table that provides a reliable and sturdy jointing surface for your workpieces.

The accessories include are a real bonus - Durable, carefully fitted dust collection bags, spring-loaded blade guards, push sticks, DIY guides - you name it, this machine is delivered to your doorstep with it.

Features:

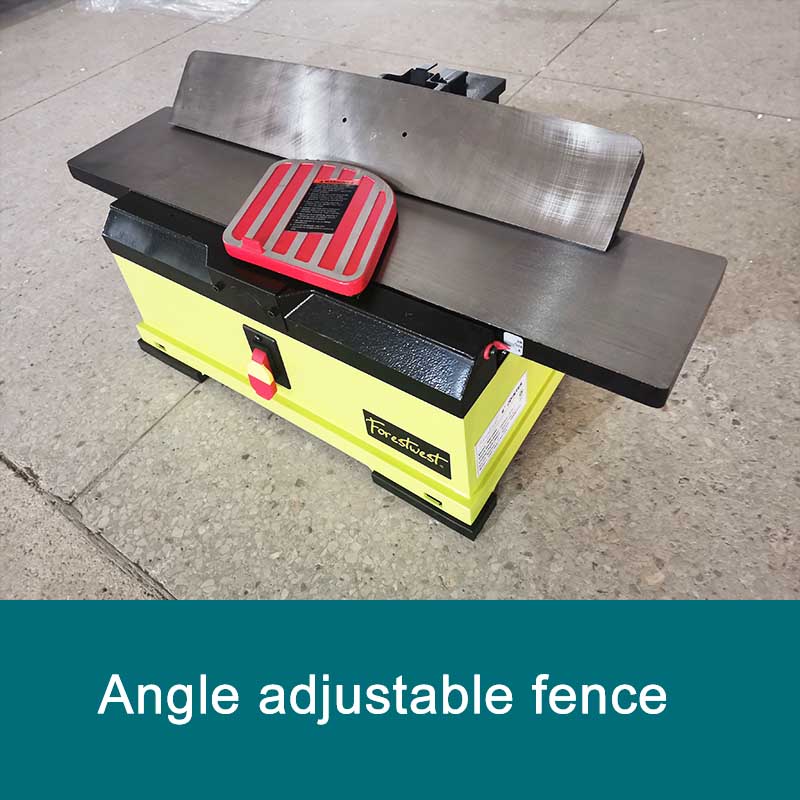

  • Angle adjustable fence

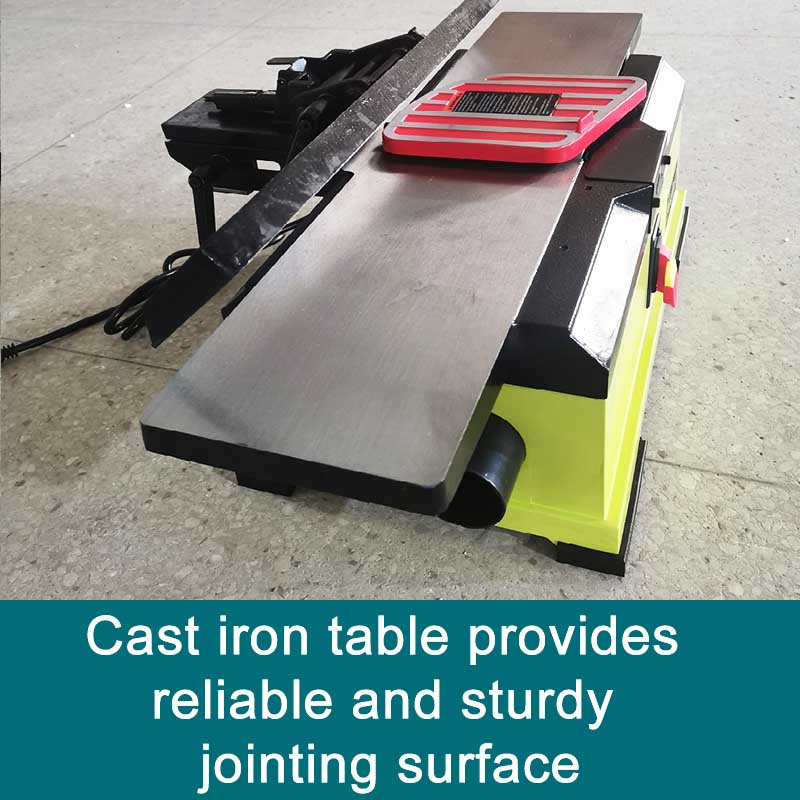

  • Heavy duty cast iron table

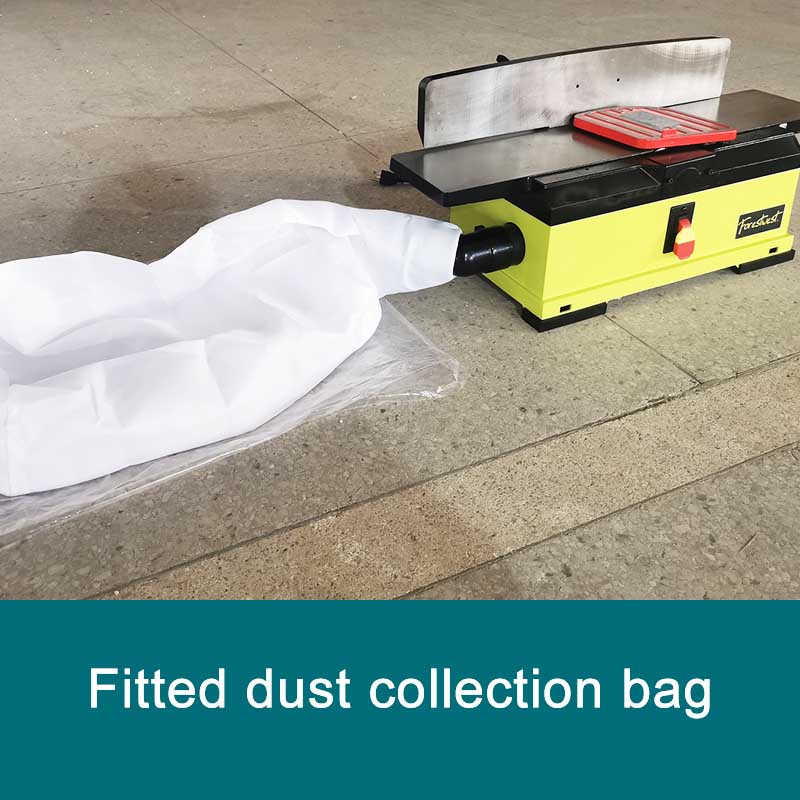

  • Fitted dust collection bag

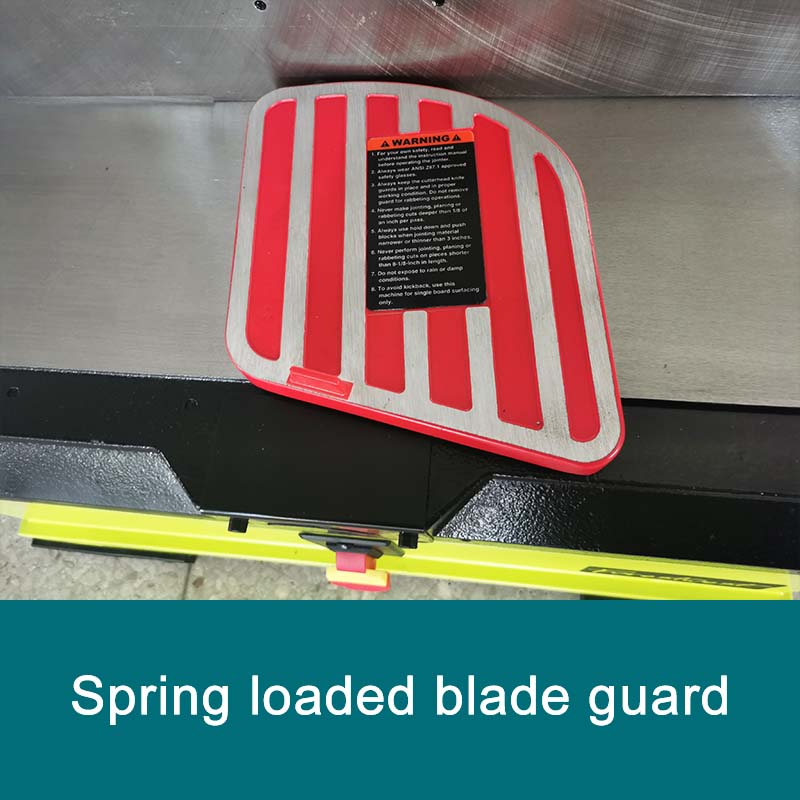

  • Spring loaded blade guard
  • 2 double side SK5 carbide blades

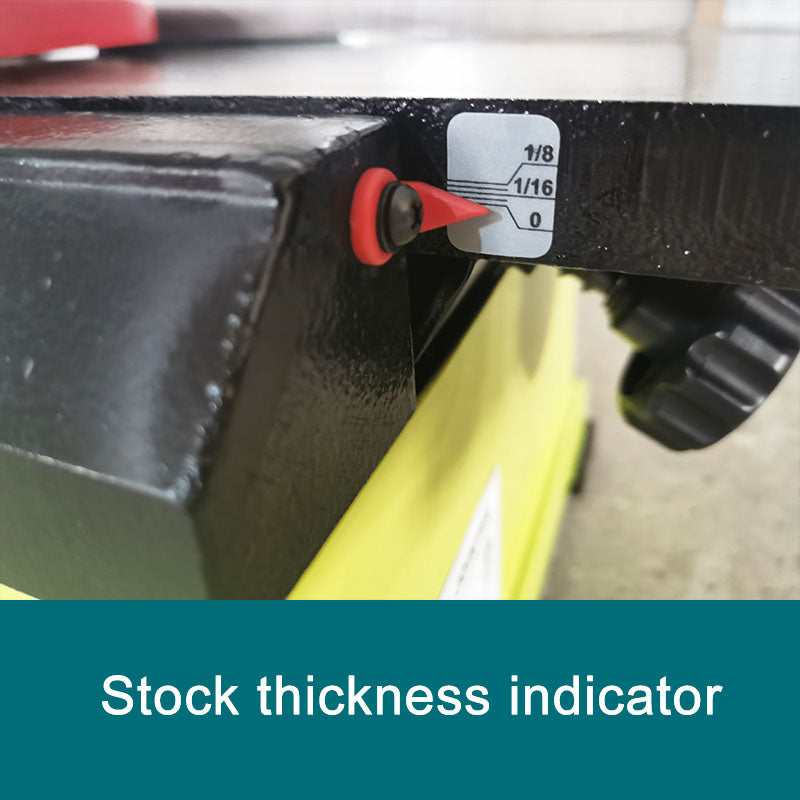

  • Stock thickness indicator
  • Push stick
  • Comprehensive manual

Specifications:

Model FORESTWEST 10505
Motor 1.5HP (1,100W)/ 110 Volts/ 10 Amps
Max Cutting Width 6"
Max Cutting Depth 1/8"
Recommended Cutting Depth 1/32"
Cutterhead Speed  10,000 RPM
Number of Blades  2
Table size 28-1/2" x 6-1/4"
Fence size 21" x 4-1/4"
Fence Angle 90° - 135°

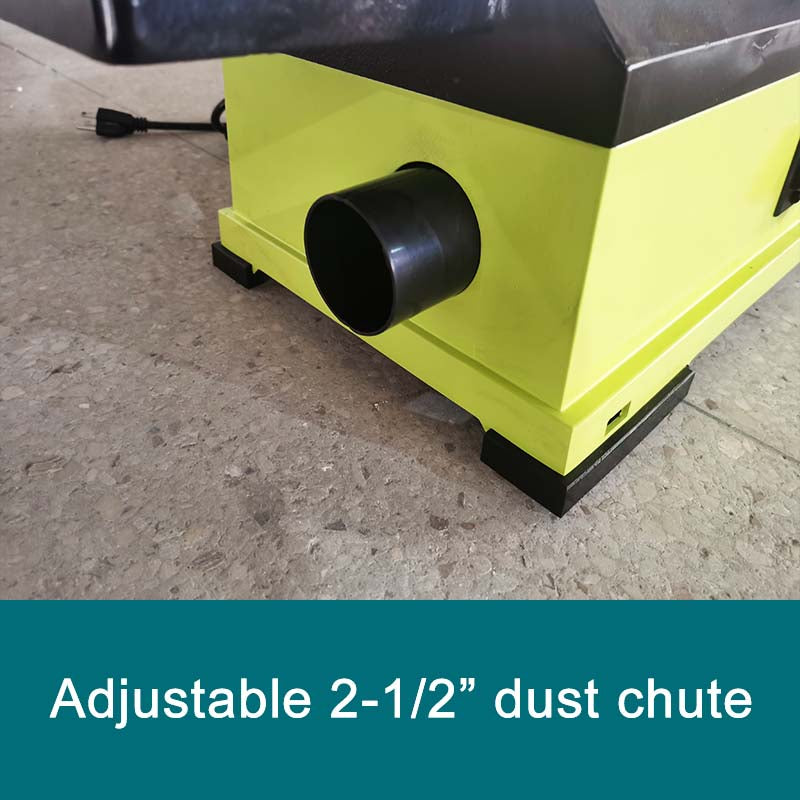

Dust collection port 2-1/2"
Net Weight/ Gross Weight 62 lbs/ 66 lbs
Packing Size 33" x 15" x 11"
Warranty 3 Years

Shipping Cost

Want to save more on the shipping? Please contact us if:

  • You have commercial address with loading dock

  • You'd like to pick up at carrier's depot

Customer Reviews
5.0 Based on 3 Reviews
5 ?
100%
3
4 ?
0%
0
3 ?
0%
0
2 ?
0%
0
1 ?
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
ER
07/06/2021
Ed R.

Great Small Jointer

Came out of the box ready to use. Cleaned and waxed the top. Checked factory set ups and they were spot on. Turned on and couldn��t believe how quiet it runs. Ran a couple on boards thru it and it did an excellent job. Hooked right up to my dust collector . So far working great.

DJ
06/05/2021
David J.

great machine

The first thing I ran though it was a old piece of rough 2x4. To be honest I thought it was out of adjustment the machine ran so quite. Thought I was not cutting anything, until I turned the 2x4 over and could see what a nice smooth finish I had. Then I ran a 6ft. cherry board I had though it. Did a great job, and you know that cherry is a hard wood to cut. Love the machine. First piece of Forestwest machinery for me, and am impressed.

J
05/15/2021
js

Forestwest Jointer

I have used this jointer twice since purchase. It seems to be a nice little machine. Not near as loud as I thought it wood be. I think it will greatly improve the quality of the glued up panels for my projects that I build. Strongly recommend for hobbyists.
