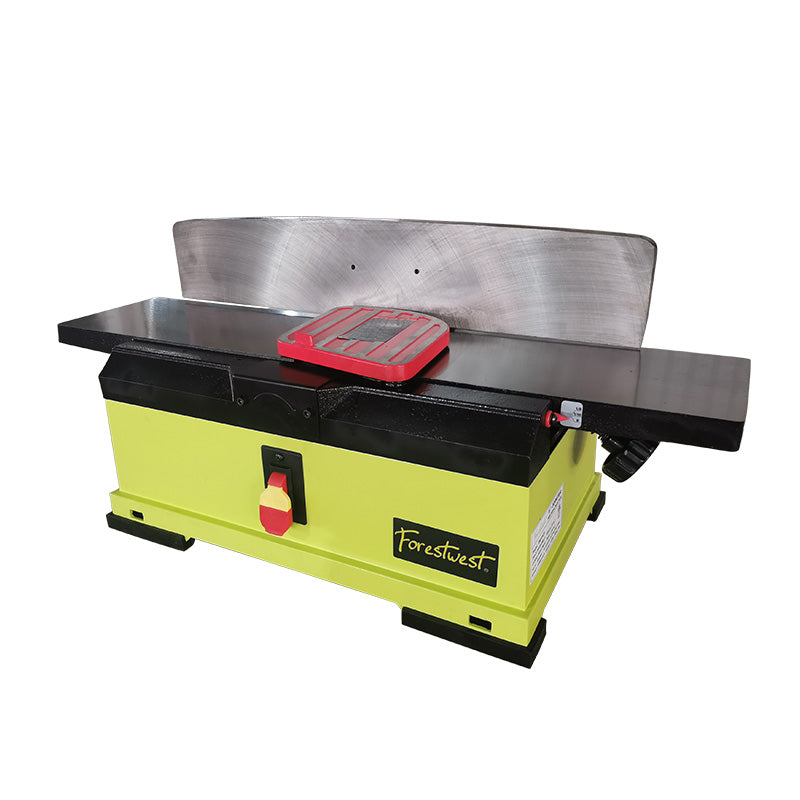

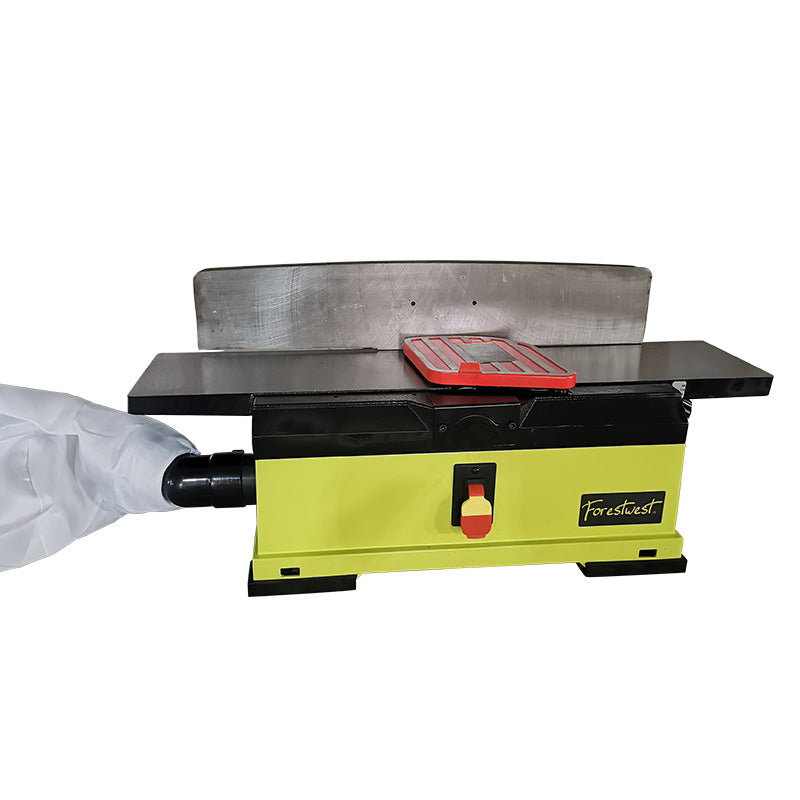

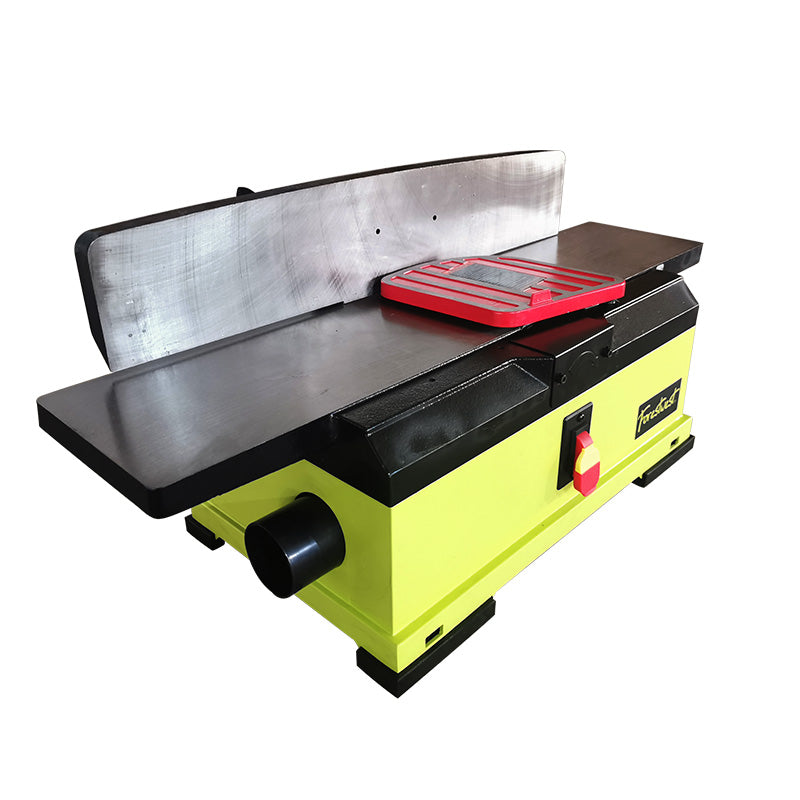

FORESTWEST BM10525, 2.0HP 6" Wood Jointer with Spiral Blade & Cast Iron Table


3 reviews
Price:
Sale price$989.00

Description

NOTE: This item is only available for Pick Up in our store.This Forestwest fully upgraded 6" benchtop wood jointer features heavy duty cast iron table provides a reliable and sturdy jointing surface for your workpieces and 14 (2 rows) of spiral blade utilizes 14mm staggered and rotatable (4 times) tungsten carbide blades for a clean, smooth finish.

The accessories include are a real bonus - Durable, carefully fitted dust collection bags, spring-loaded blade guards, push sticks, DIY guides - you name it, this machine is delivered to your doorstep with it.

Features:

  • 14 (2 rows) of spiral cutterhead
  • Heavy duty cast iron table

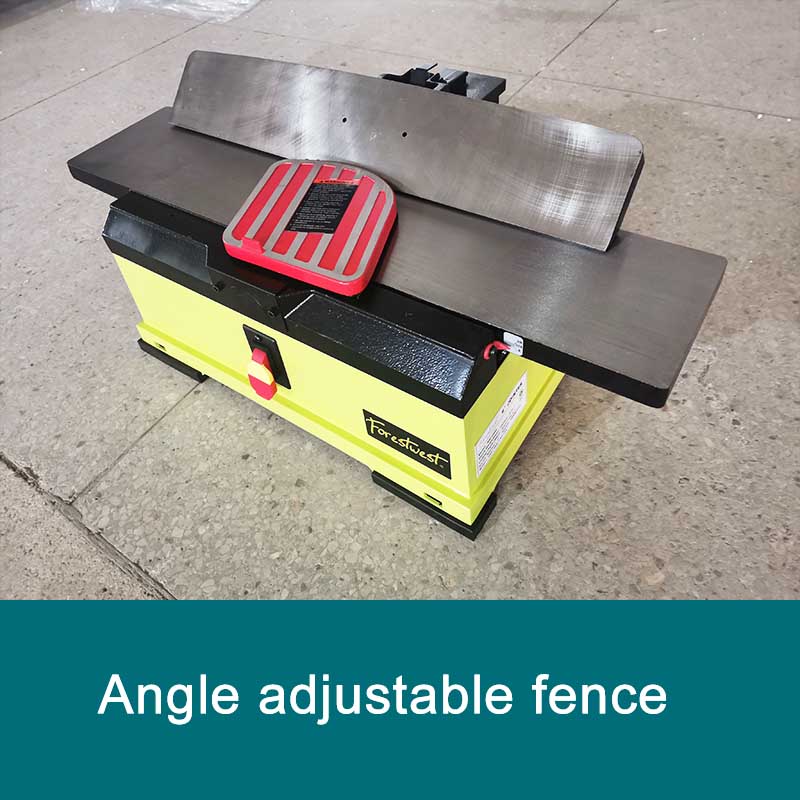

  • Angle adjustable fence

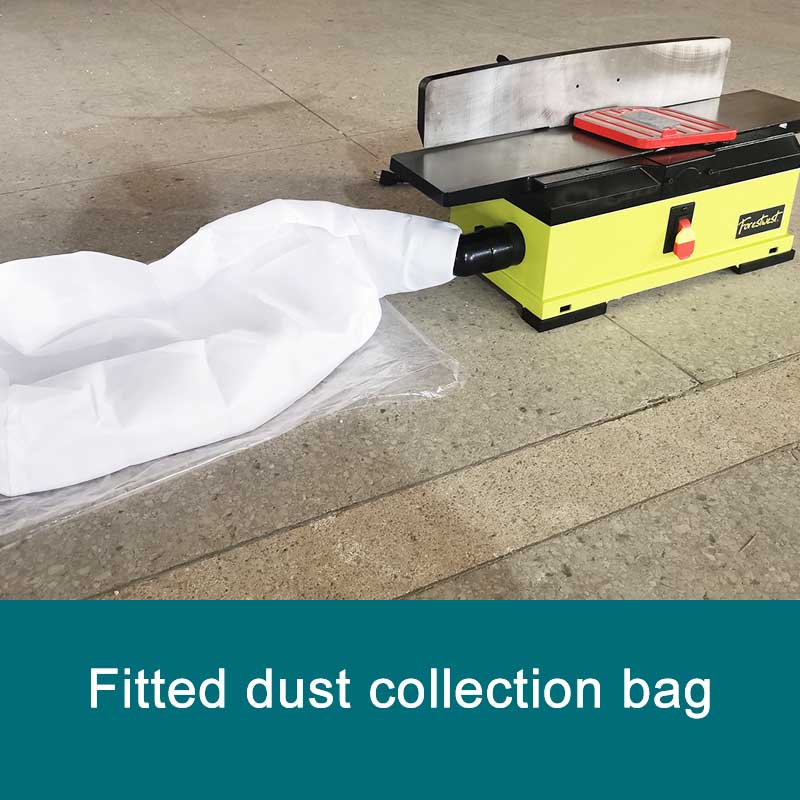

  • Fitted dust collection bag

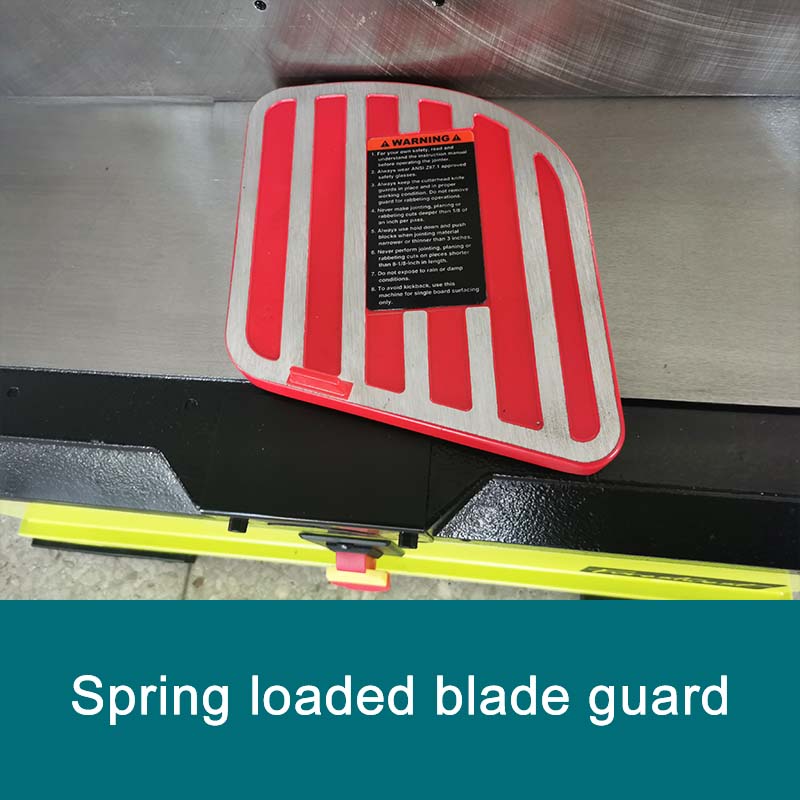

  • Spring loaded blade guard

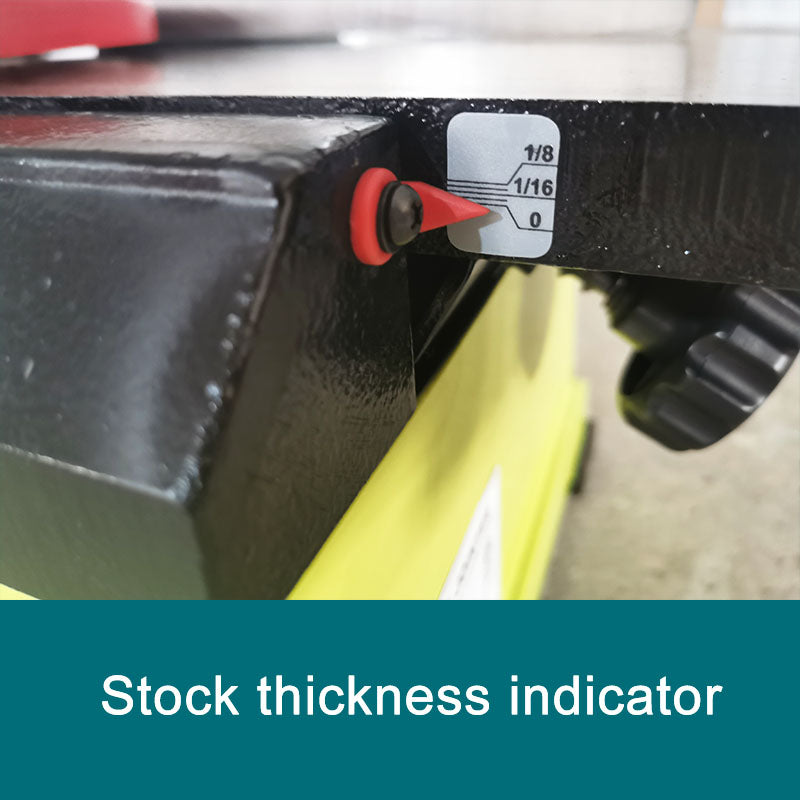

  • Stock thickness indicator
  • Push stick
  • Comprehensive manual

Specifications:

Model FORESTWEST BM10525
Motor 2.0HP (1,500W)/ 110 Volts/ 15 Amps
Max Cutting Width 6"
Max Cutting Depth 1/8"
Recommended Cutting Depth 1/32"
Cutterhead Speed  10,000 RPM
Cutterhead Diameter  2" (50.8mm)
Number of Blades  14, in 2 spiral rows
Cutter Knife Size (LxWxT) 0.59"x0.59"x1.10", R6/37°
Table size 28-1/2" x 6-1/4"
Fence size 21" x 4-1/4"
Fence Angle 90° - 135°

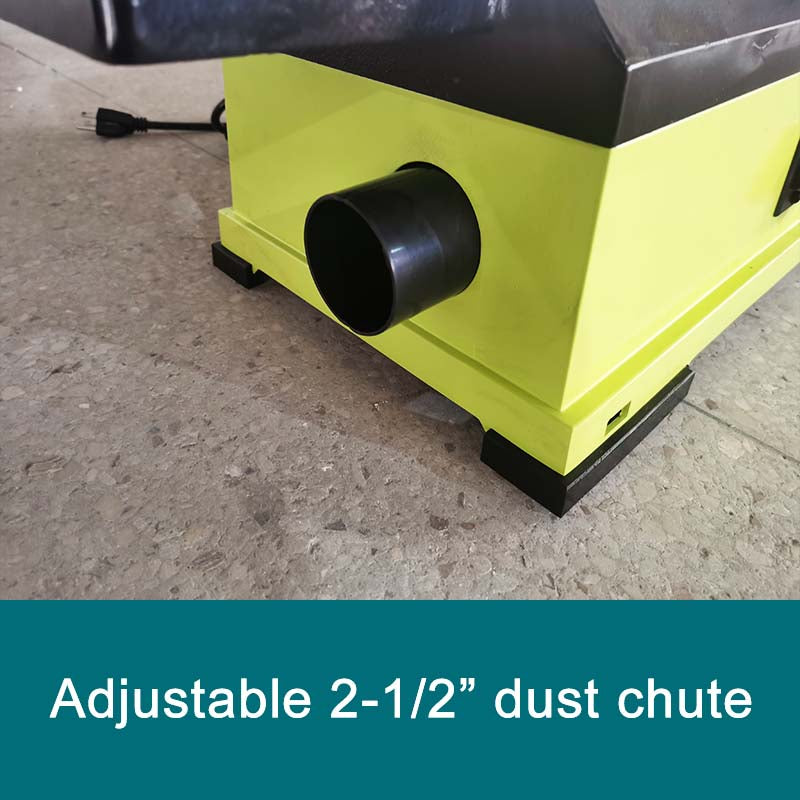

Dust collection port 2-1/2"
Assembled Size 30" x 20" x 13"
Net Weight/ Gross Weight 66 lbs/ 70 lbs
Packing Size 33" x 15" x 11"
Warranty 3 Years





Shipping Cost

Want to save more on the shipping? Please contact us if:

  • You have commercial address with loading dock

  • You'd like to pick up at carrier's depot

Estimate shipping

Customer Reviews
5.0 Based on 3 Reviews
5 ?
100%
3
4 ?
0%
0
3 ?
0%
0
2 ?
0%
0
1 ?
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
DB
07/16/2021
David B.

THis is a great small footprint Jointer

I chose this one for 2 reasons, size and price. My workshopn is my garage so space is a major concern. It was better than I expected. To be fair, I have not used it extensively yet. Set up was simple, only took 10 minutes. Be sure to double check angles before running, I always do anyway. I don't rely on adjustable stops. I will update after more extensive use.

JL
06/26/2021
James L.

Great New Jointer

I am a middle school shop teacher and our old 8" Delta jointer finally became too difficult to maintain (Probably original with the school so 40 years old!). Anyway I purchased this Forestwest model as a replacement. We really don't do much work that would require a wider model so this seemed like a logical choice. The helical head cuts smoothly and the depth adjusts easily. Very pleased with the performance for the price.

DP
05/04/2021
David P.

This unit is a wonderful piece??

This unit is a wonderful piece of kit. Well built and quite heavy. I check tables and fence for square before every use and have had no need to make any adjustments. The helical head is well worth the extra money. It gives smooth clean cuts, even in figured woods like curly and quilted maple.
