Description
This Forestwest Cross Slide Table has a 400 x 120mm (15-3/4" x 4-3/4") table with 220mm travel on X-axis and 160mm travel on Y-axis. This compound table is well machined, and the travel is smooth and accurate. This is a precision model with the dial indexed handle in 0.05mm graduation.
This cross slide table is ideal for repetitive multi-axis work, it will highly reduce the setup time. The construction is sturdy and suitable for heavy-duty work. Can be used on BF-16 milling head (mounting holes needs drilling).
Cross Slide Table Features:
-
Sturdy construction for heavy-duty work.
-
Table Size 400 x 120mm (15-3/4" x 4-3/4") with 0.05mm graduation.
-
Precise and smooth slide action, slide range to be X-220mm x Y-160mm.
-
Ideal use on milling machine and lathe.

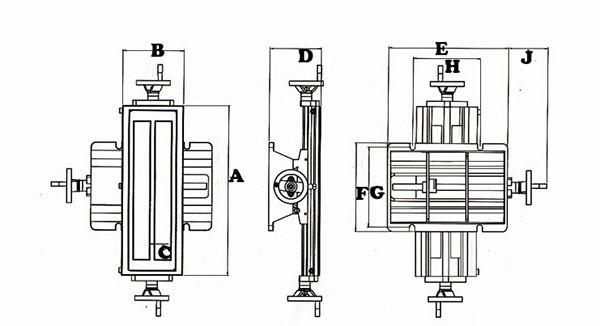

Specifications:
|
A |
B |
C |
D |
E |
F |
|
400mm |
120mm |
10mm |
145mm |
282mm |
222mm |
|
G |
H |
J |
X Travel |
Y Travel |
|
|
200mm |
160mm |
110mm |
220mm |
160mm |
| Model | FORESTWEST 30273 |
| Net Weight/ Gross Weight | 51 lbs/ 65 lbs |
| Packing Size | 20" x 15" x 9" |
| Warranty | 1 Year |
Shipping Cost
Want to save more on the shipping? Please contact us if:
-
You have commercial address with loading dock
-
You'd like to pick up at carrier's depot
