FORESTWEST 30201, 7" Precision Compound Slide Table With Fixed Base - Forestwest

FORESTWEST 30201, 7" Precision Compound Slide Table With Fixed Base

185X100mm Cross Slide Table Fixed Base | Cross Slide Table Forestwest

Roll over image to zoom in

FORESTWEST 30201, 7" Precision Compound Slide Table With Fixed Base

Name: FORESTWEST 30201, 7" Precision Compound Slide Table With Fixed Base
Brand: Forestwest
SKU: BM30201
Price: 189.0 CAD
Availability: InStock

ForestwestSKU: BM30201

filler

Share this product

This Forestwest Cross Side Table has a 185 x 100mm (7-1/4" x 4") table with 85mm travel in X-axis and 70mm in Y-axis. This compound table is well machined and the travel is smooth and accurate. This is a precision model with the dial indexed handle in 0.01mm graduation.

This cross slide table is ideal for repetitive multi-axis work, it will highly reduce the setup time. The construction is sturdy and suitable for heavy-duty work.

Features:

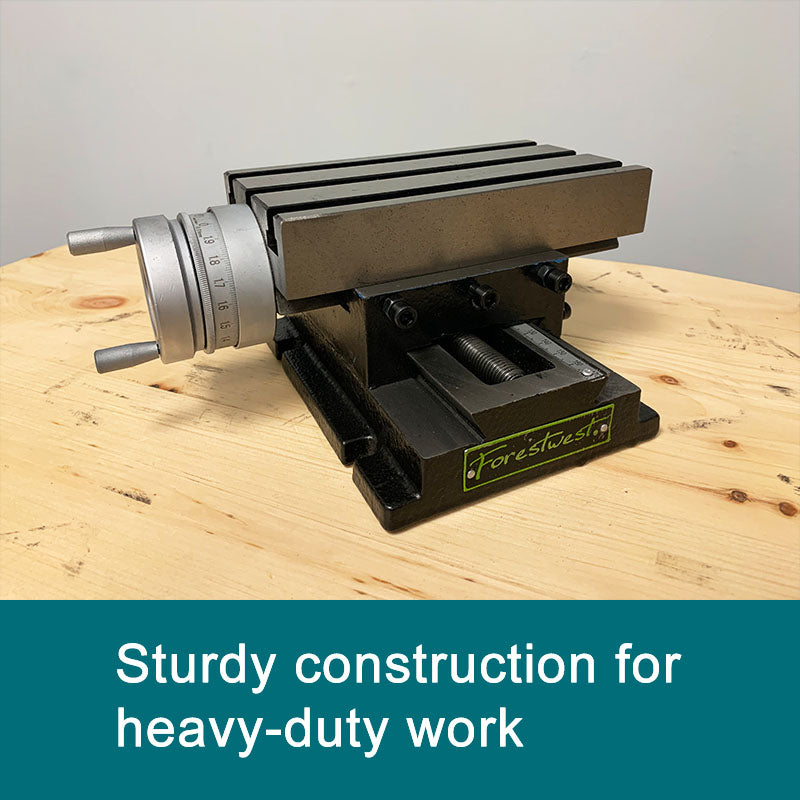

Sturdy construction for heavy-duty work.

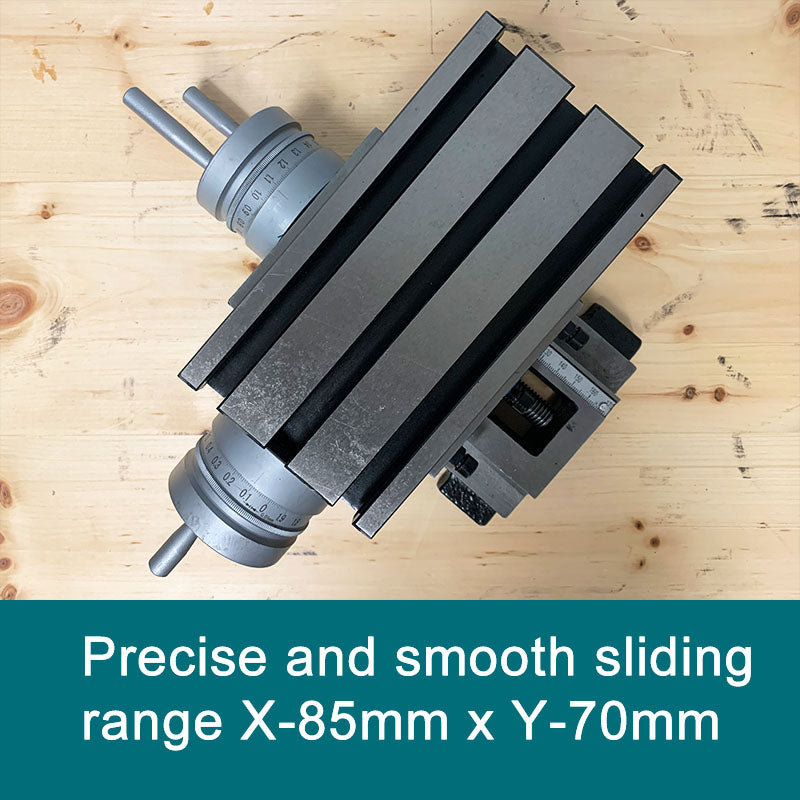

Precise and smooth sliding action, sliding range X-85mm x Y-70mm.

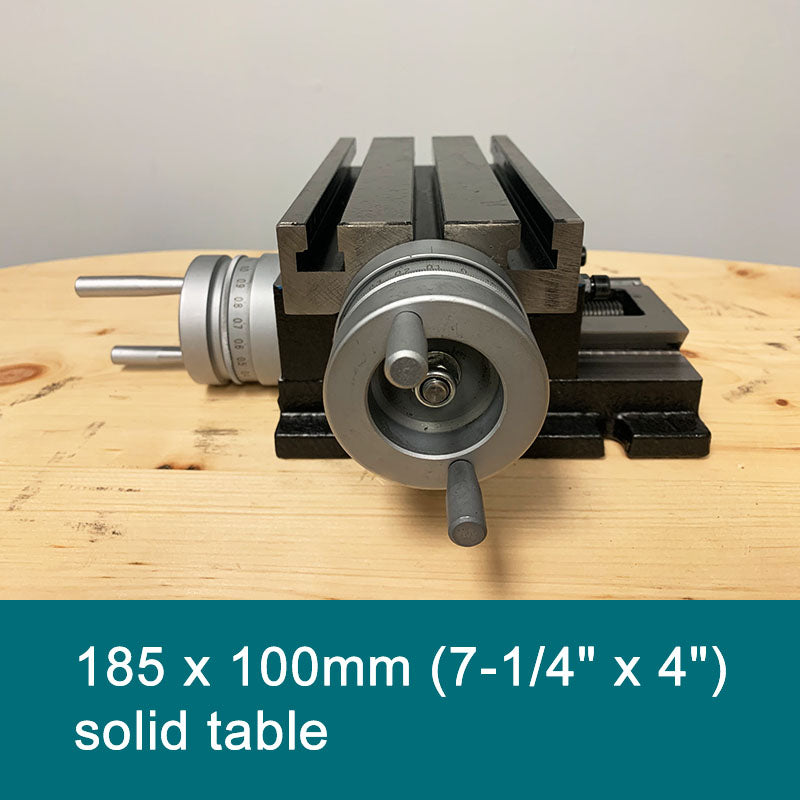

A 185 x 100mm (7-1/4" x 4") solid table.

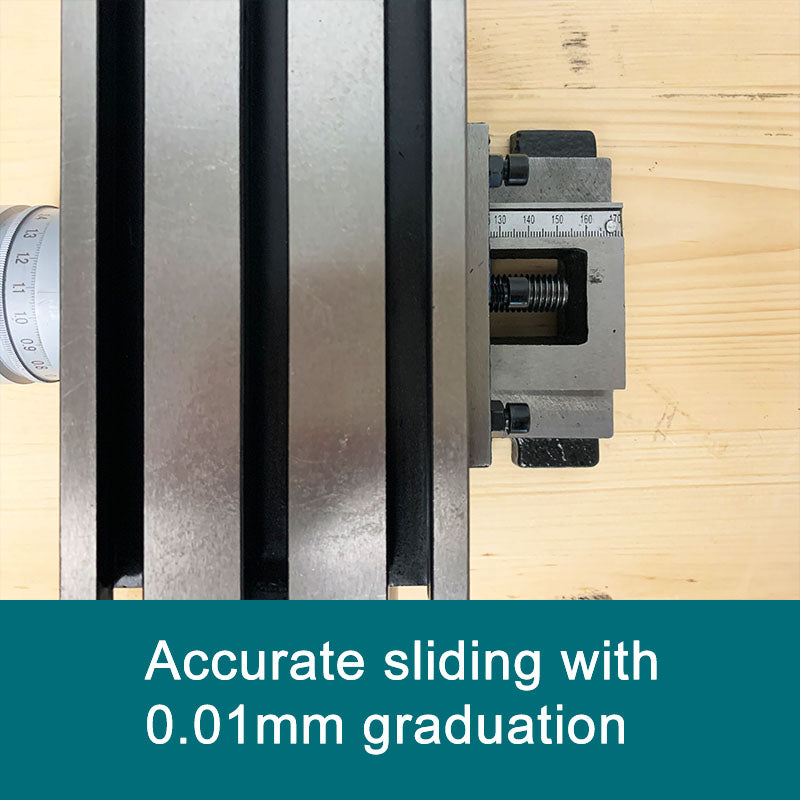

Accurate sliding with 0.01mm Graduation.

Specifications:

Model	FORESTWEST 30201
Table Size	185 x 100mm (7-1/4" x 4")
X-travel	85mm
Y-Travel	70mm
Graduation	0.01mm
Net Weight/ Gross Weight	23 lbs/ 26 lbs
Packing Size	11" x 11" x 7"
Warranty	1 Year
