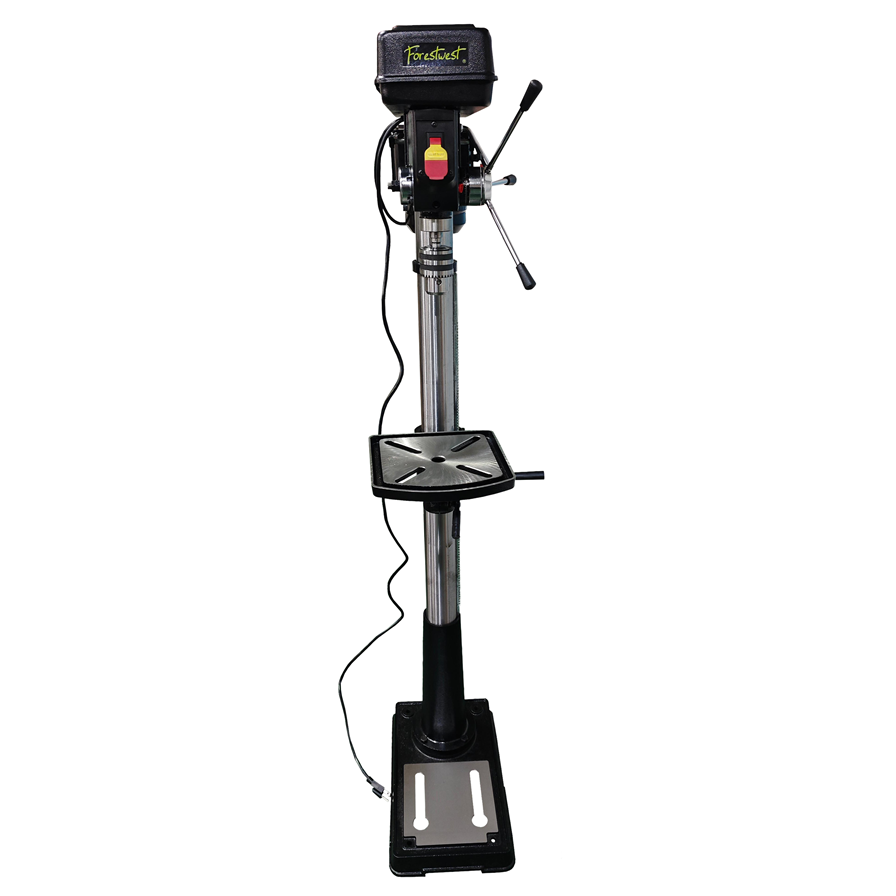

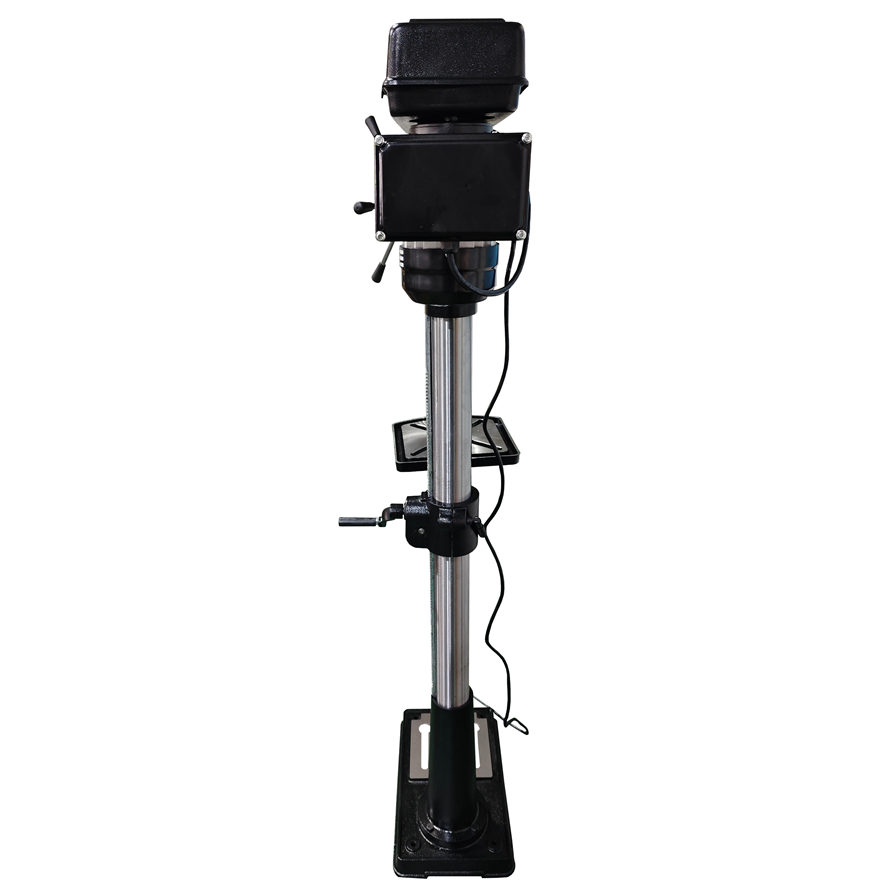

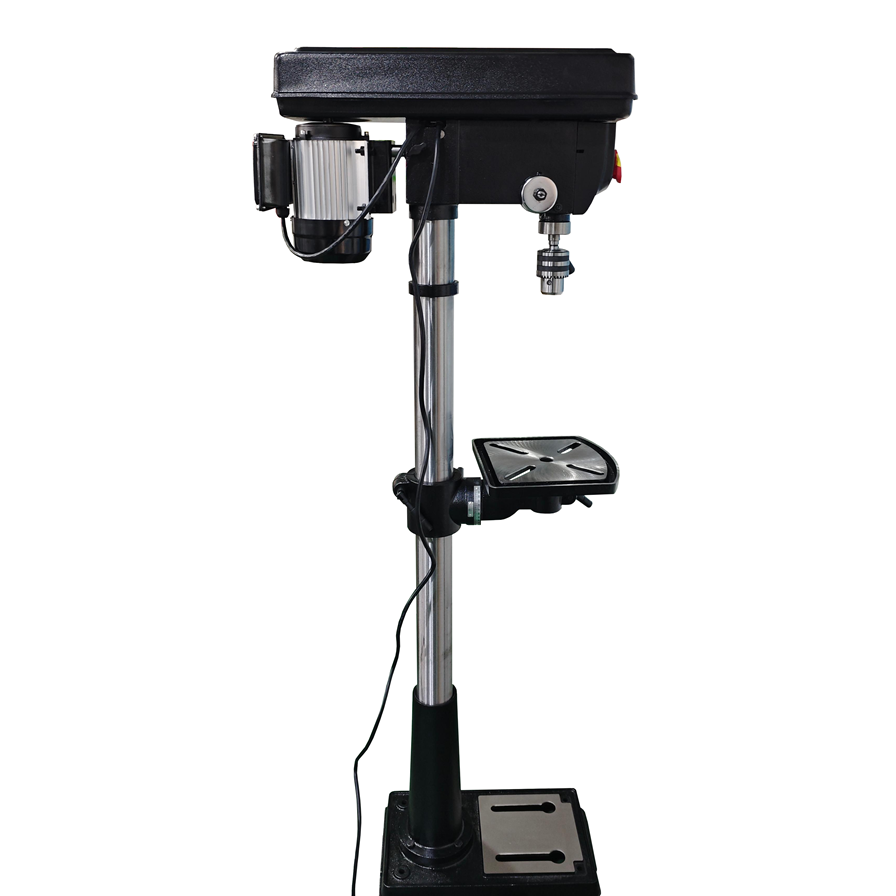

The FORESTWEST 13" Floor Drill Press BM20112 is a powerful and reliable tool designed for precision drilling in a variety of materials. Built with durability and performance in mind, this drill press is perfect for both professional workshops and DIY enthusiasts.
13" Floor Drill Press Features:
-
600W 110V/60Hz S1 copper wire motor, powerful & reliable for long time use

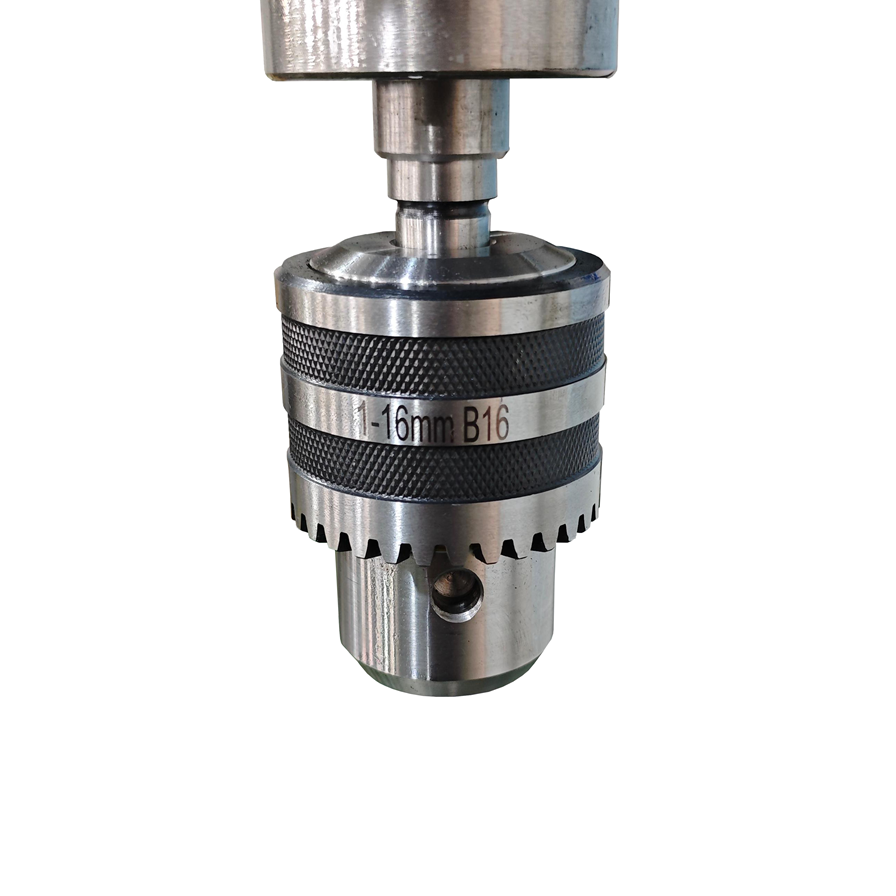

- 13" (330mm) swing, 5/8" (16mm) chuck
- Standard MT2 tapper

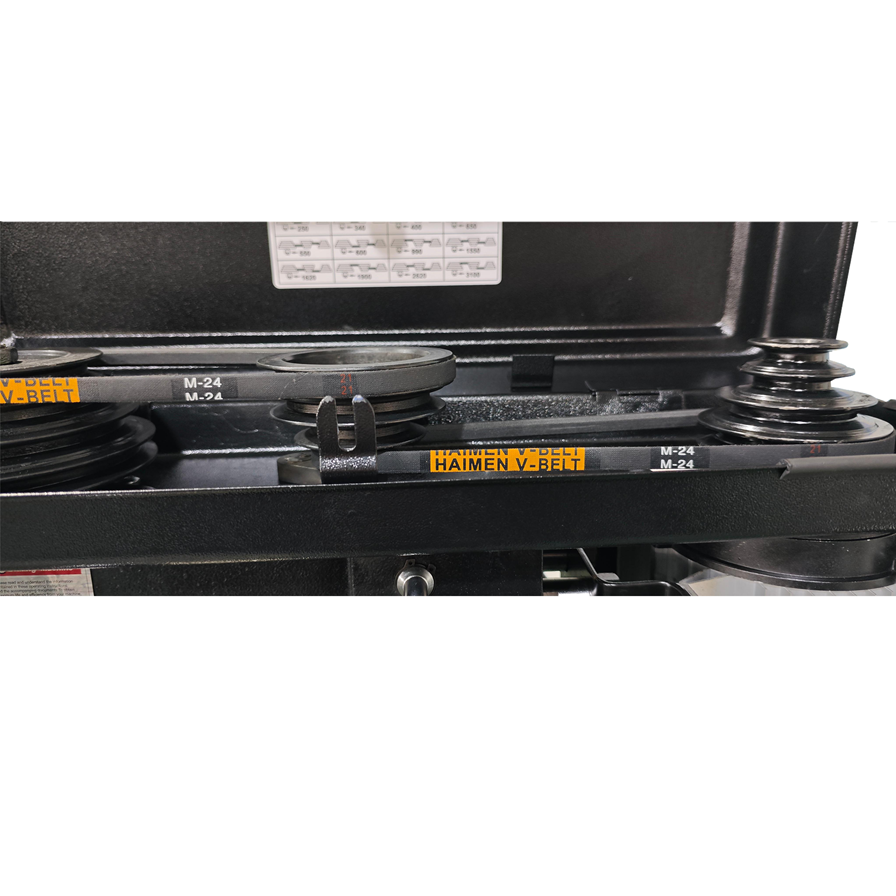

- 12 speed, ranging from 250 to 3100rpm (250,340,400,650/ 550,600,990,1550/ 1620,1900,2620,3100rpm)
-
Solid cast iron base and table, rack & pinion design for more stable action
Specifications:
| Model |
FORESTWEST 13" Floor Drill Press BM20113 |
| Motor |
0.8HP 600W, 110V, 5.4Amps S1 |
| Chunk
|
5/8" 16mm |
| Drill Capacity |
5/8" 16mm |
| Spindle Travel |
3.15" 80mm |
| Spindle Taper |
MT2 |
| Speed Change
|
12 |
| Spindle Speed
|
250 - 3100 RPM |
| Swing
|
13" 330mm |
| Working Table
|
10" x 10/11.8dia" 254x254/300dia mm |
| Table Tilt |
-45/45° |
| Max. Distance from Spindle to Table |
27.6" 700mm |
| Base
|
17.7" x 10.6" 450x270mm |
| Max. Distance from Spindle to Base |
46.9" 1190mm |
| Column
|
Ø2.9" 73mm |
| Total Height
|
64.2" 1630mm |
| Rack & Pinion |
Yes |
| Net Weight/ Gross Weight
|
115 lbs/ 121.3 lbs 52/55kg |
| Packing Size
|
56.3" x 20" x 10.2" 1430x510x260mm |
