Description

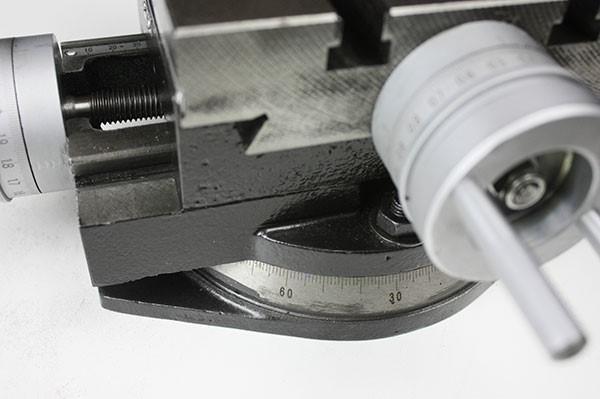

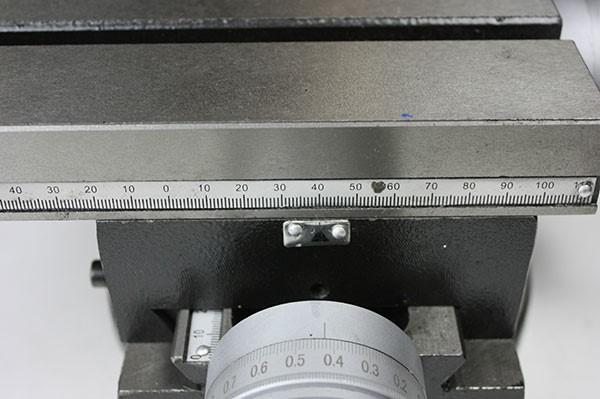

This Forestwest BM30206 Cross Slide Table has a 225*175mm table, with a 105mm travel in X axis and 90mm travel in Y axis. This compound table is eqipped with a swivel base, it is well machined and the travel is smooth and accurate, it enables every vice to slide at two directions. This is a precision model, the dial indexed handle in 0.01mm graduation.
This cross slide table is ideal for repetitive multi axis work, it will highly reduce the set up time. The construction is sturdy and suitable for heavy duty work.
225X175MM Compound Table Features:
-
Sturdy construction for heavy duty work
-
Precise and smooth sliding action, slide range X 105mm *Y 90mm
-
A 225*175mm solid table
-
Smooth and accurate sliding 0.01mm Graduation.
Specifications:
Model |
225X175MM Cross Sliding Table with Swivel Base BM30206 |
|---|---|
| Table size(mm) | 225*175 |
| X-travel(mm) | 105 |
| Y-travel(mm) | 90 |
| Packing size(mm) | 340*340*210 |
| Graduation(mm) | 0.01 |
| N.W./G.W(KG) | 19/20 |
