Description
Available for back order. 30% deposit required.
Feel free contact us for the ETA of this product.

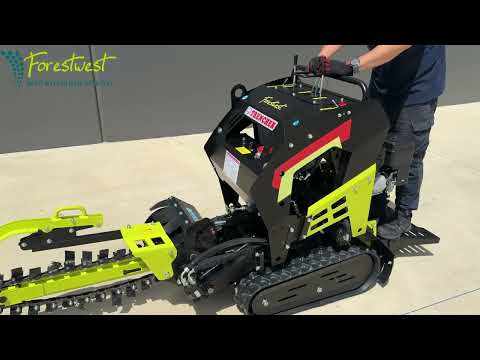

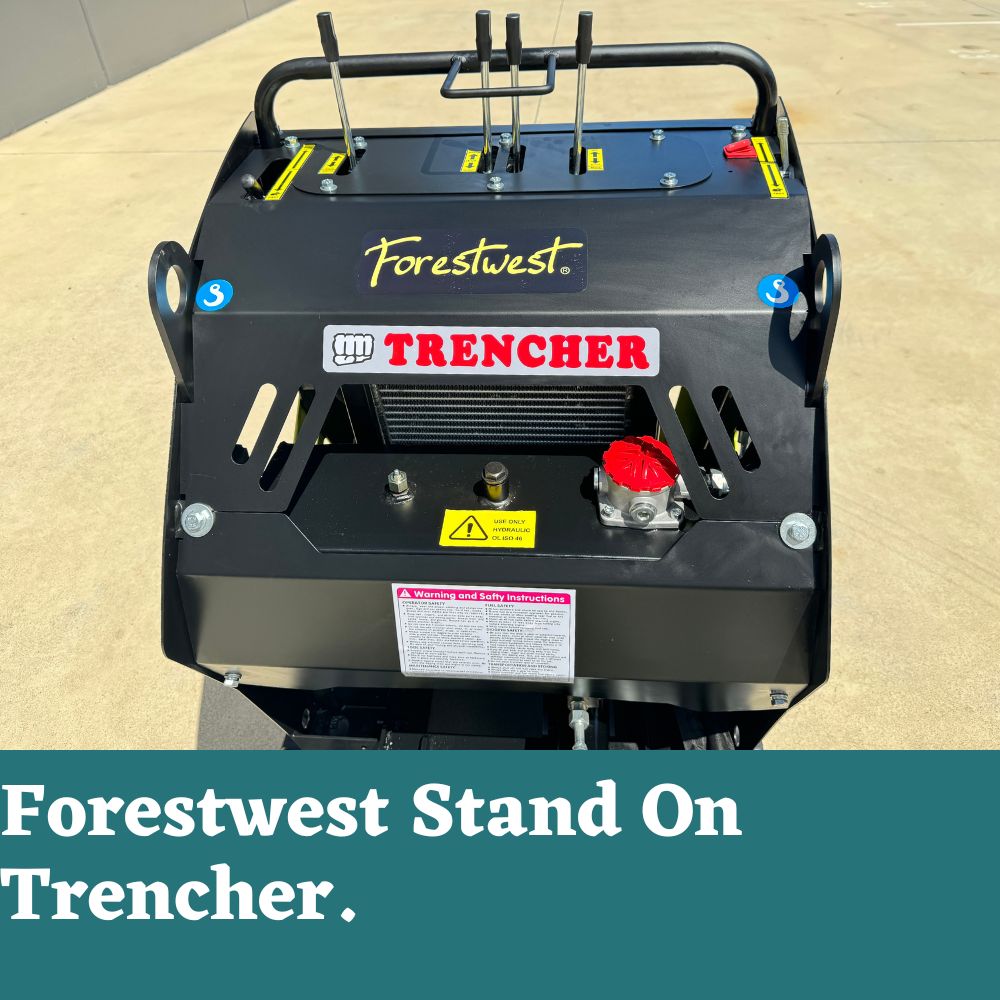

The Forestwest Mini Trencher is powered by a RATO 20hp electric start petrol engine, providing all the necessary features for effective trenching. Its easy control and operation make it well-suited for challenging tasks.
Equipped with a reliable RATO 20hp electric start petrol engine, ensuring smooth and easy starts. The trencher features a centrifugal clutch with recoil starts for efficient operation. Convenient controls, including throttle cable, stop, emergency stop button, and handle wheel lock, are located on the handlebars for user-friendly operation.
The machine comes with 27 replaceable mining grade alloy blades, ensuring durability and efficiency. Capable of adjustable trench depths up to 600mm and widths of 100mm, significantly reducing time compared to manual digging. The portable design allows access to areas where other machines may not reach, at a fraction of the cost. The height-adjustable handlebar makes it a space-saving solution, with a maximum width of 70cm for access through gates and trenching close to walls.
20hp 600mm Petrol Chain Mini Trencher:
-

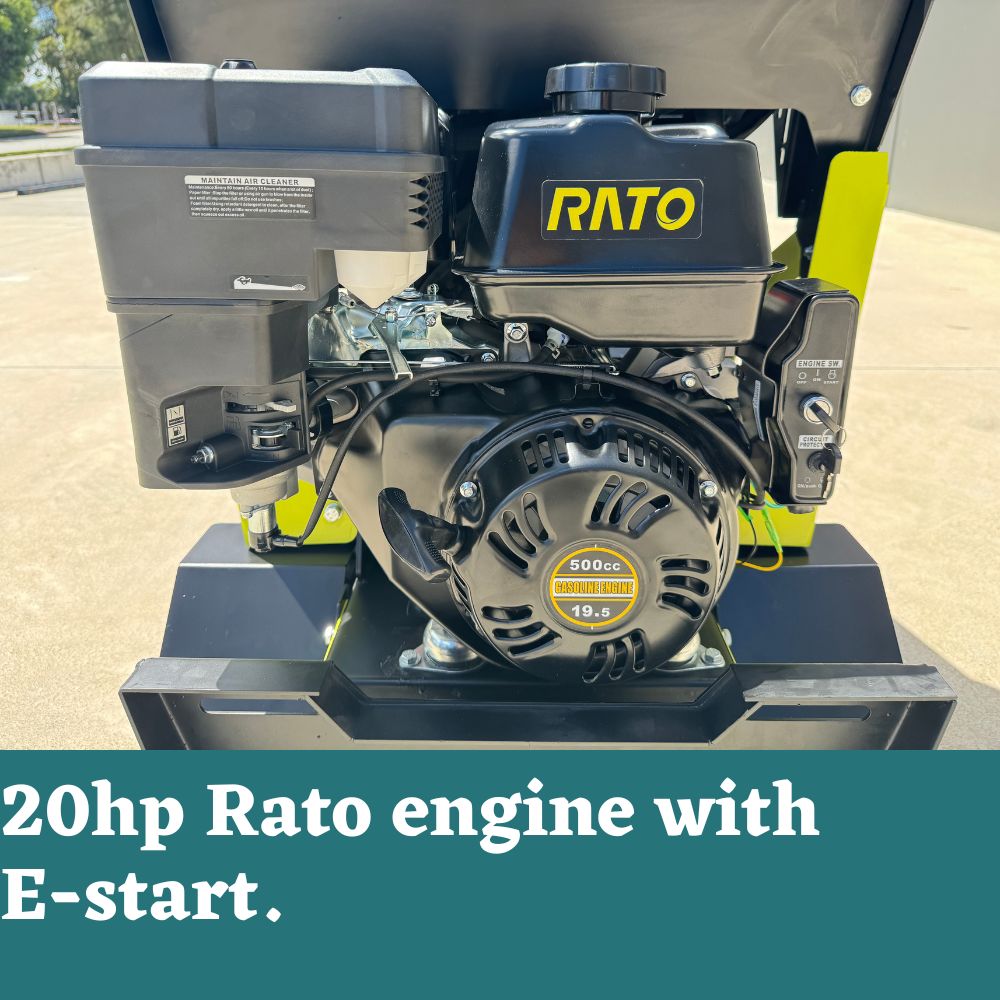

Ultra-reliable RATO 20HP powerful 4-stroke petrol engine for dependable performance.
-

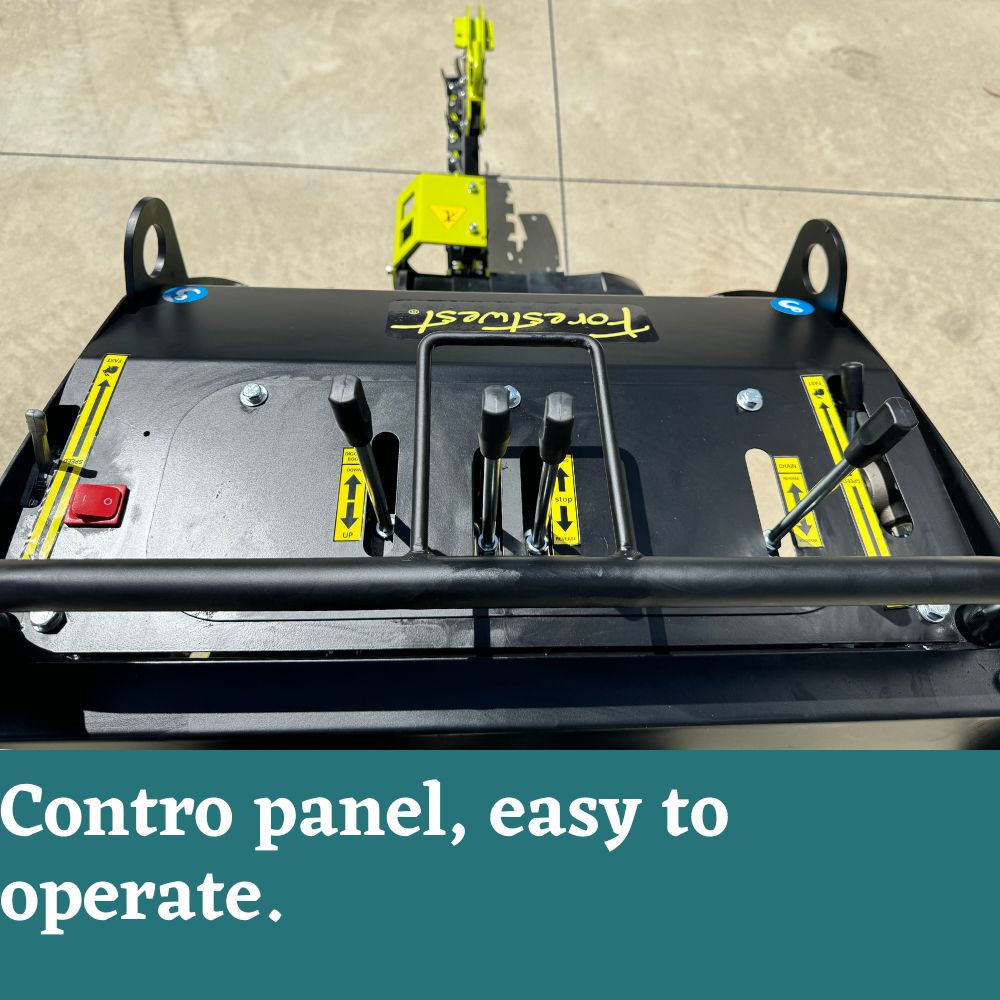

Easy control and operation with all buttons conveniently located within fingertip range.
-
Capable of digging up to 600mm in depth and 100mm in width, providing powerful and precise results.
-

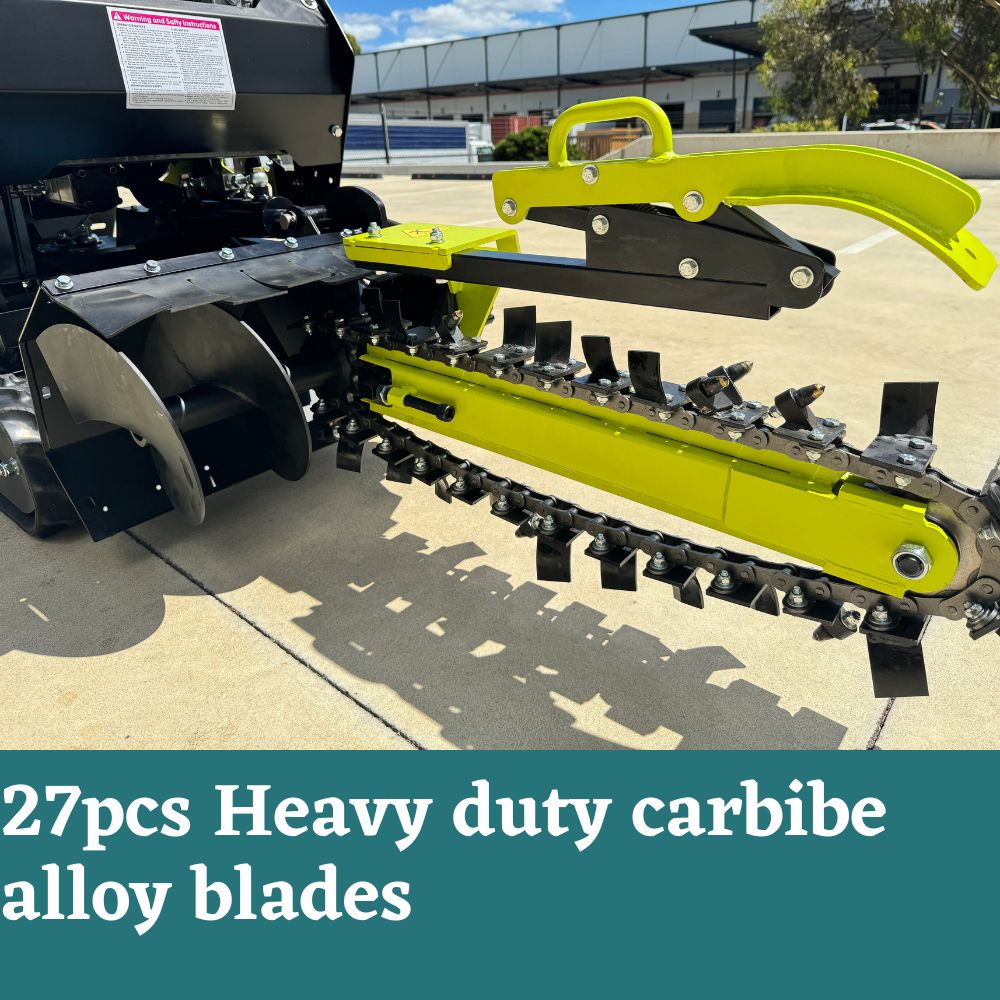

Equipped with 27 replaceable mining-grade carbide alloy blades for durability.
-
Compact 70cm body width with a height-adjustable handle for space-saving and easy access to confined areas.
Specifications:
| Model | 20hp 600mm Stand On Trencher BM699 |
|---|---|
| Engine | 20HP 500CC RATO petrol engine with Electric start |
| Trench Width | 100mm |
| Trench Depth | 0-600mm adjustable |
| Trench Capacity | Up to 150 meters per hour |
| Blade Number | 27 PCs |

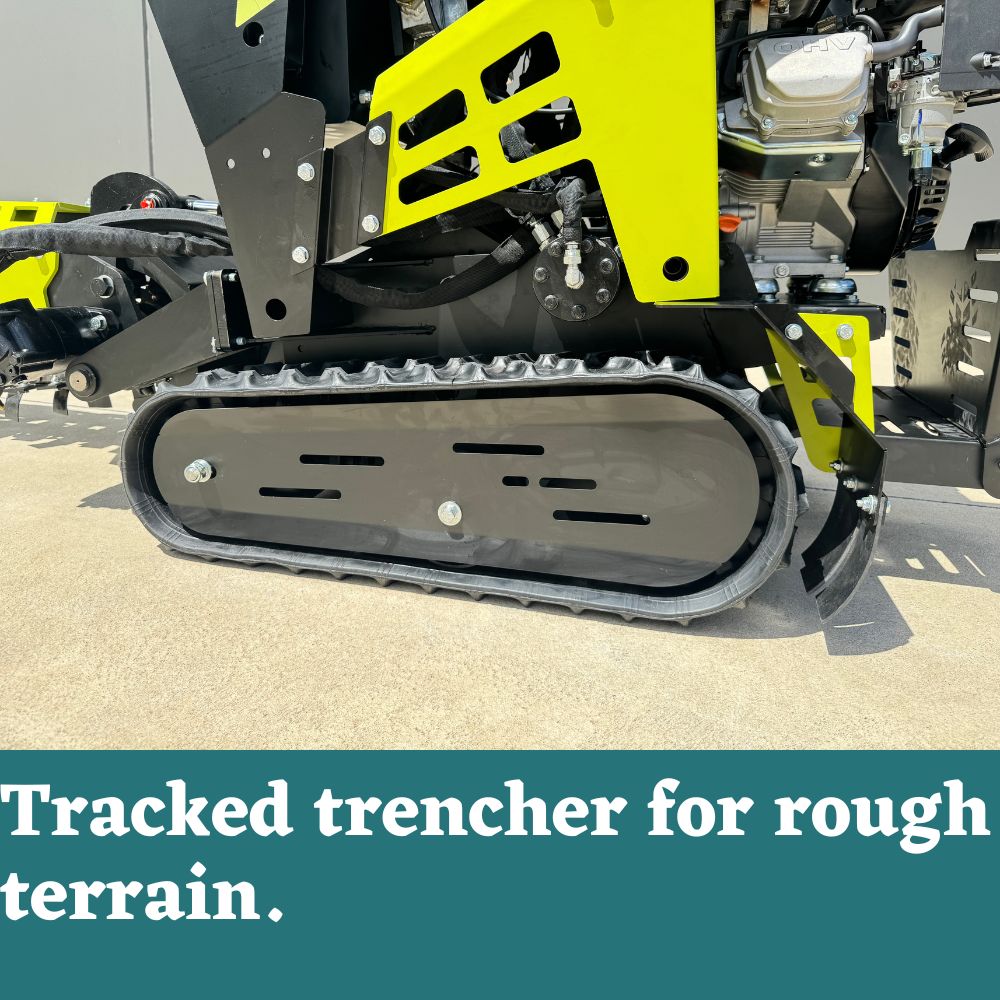

| Rubber Track Size | 600(L)*180(W)*280(H)mm |
| Chain Length | 2000mm |
| Chain Speed | 550m/min |
| Overall Size | 2348(L)*790(W)*1285(H)mm |
| Weight |
430/480 kg |
| Packing Size | 1880(L)*825(W)*1320(H)mm |
