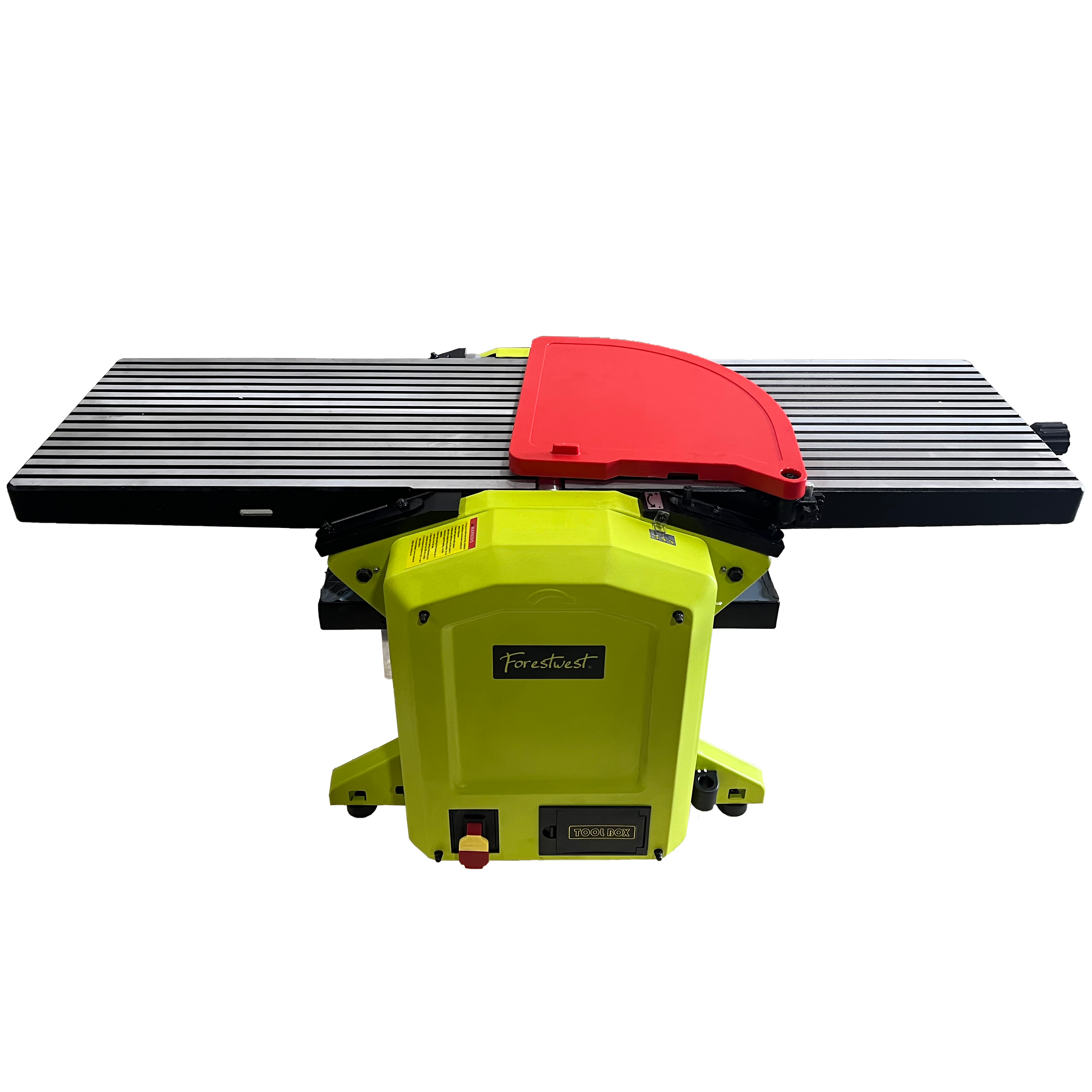

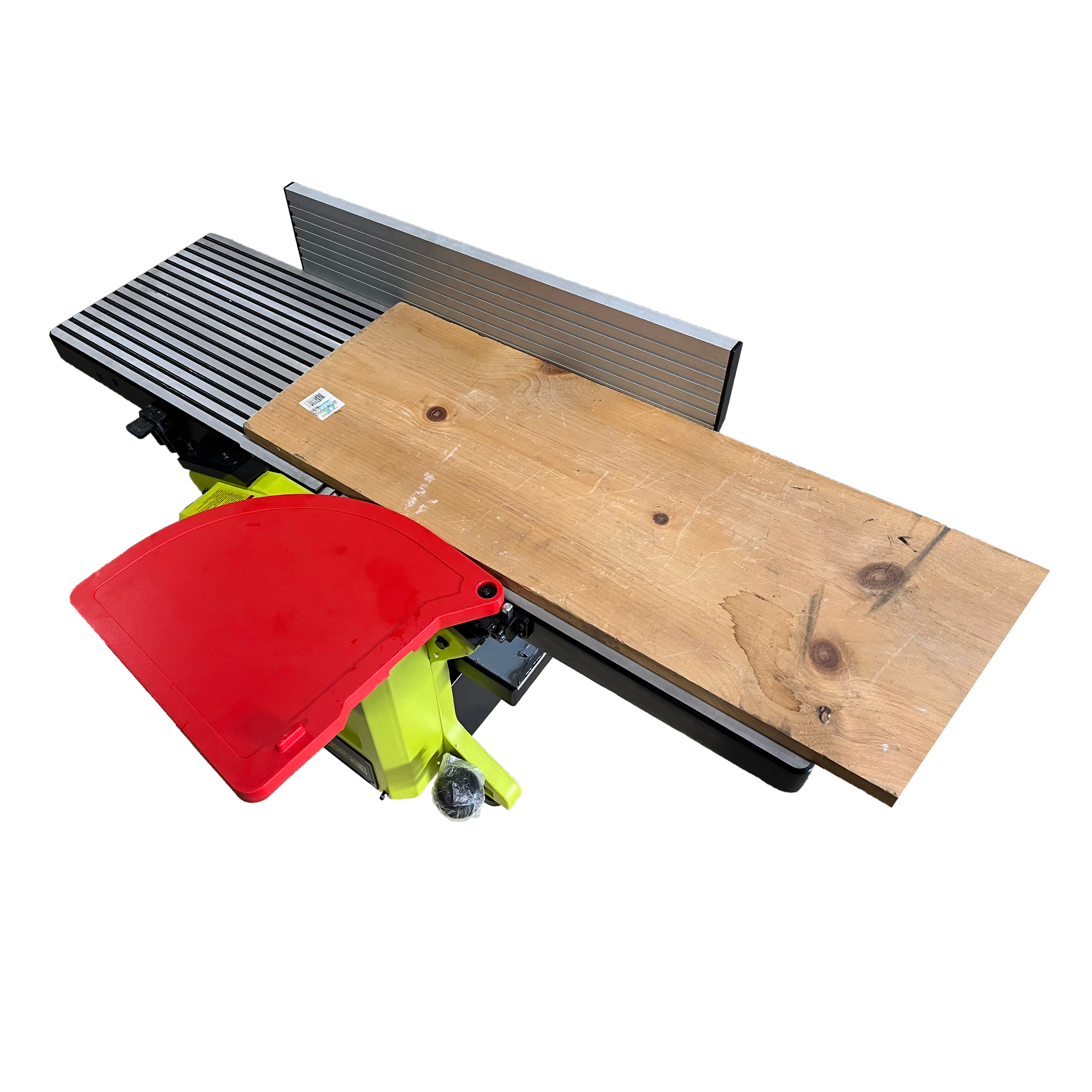

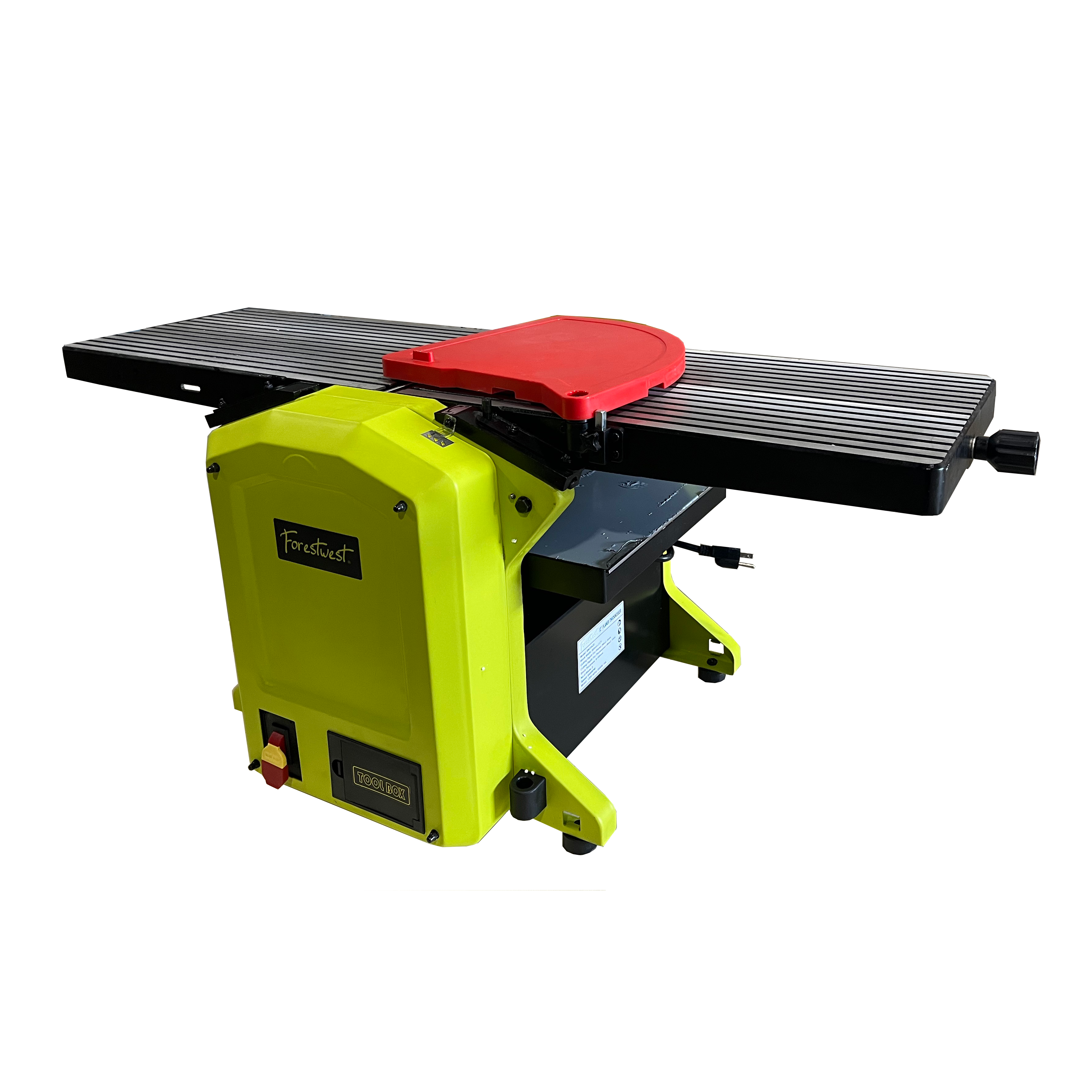

BM10420 12" Jointer and Planer Combo is a versatile tool designed for precision woodworking. This machine combines the functionalities of a jointer and planer, offering efficiency and accuracy for woodworking tasks. It features a powerful 1800W motor capable of handling stock up to 305mm wide and 160mm thick. The adjustable fence allows for precise cuts at angles ranging from 90° to 135°. With a 2-blade system and operating speed of 9500r/min, it ensures smooth operation and clean cuts. Ideal for professional woodworkers looking for a reliable tool for their workshop.
Product Feature Highlights:
- Dual-functionality: jointer and planer in one machine
- Powerful 1800W motor

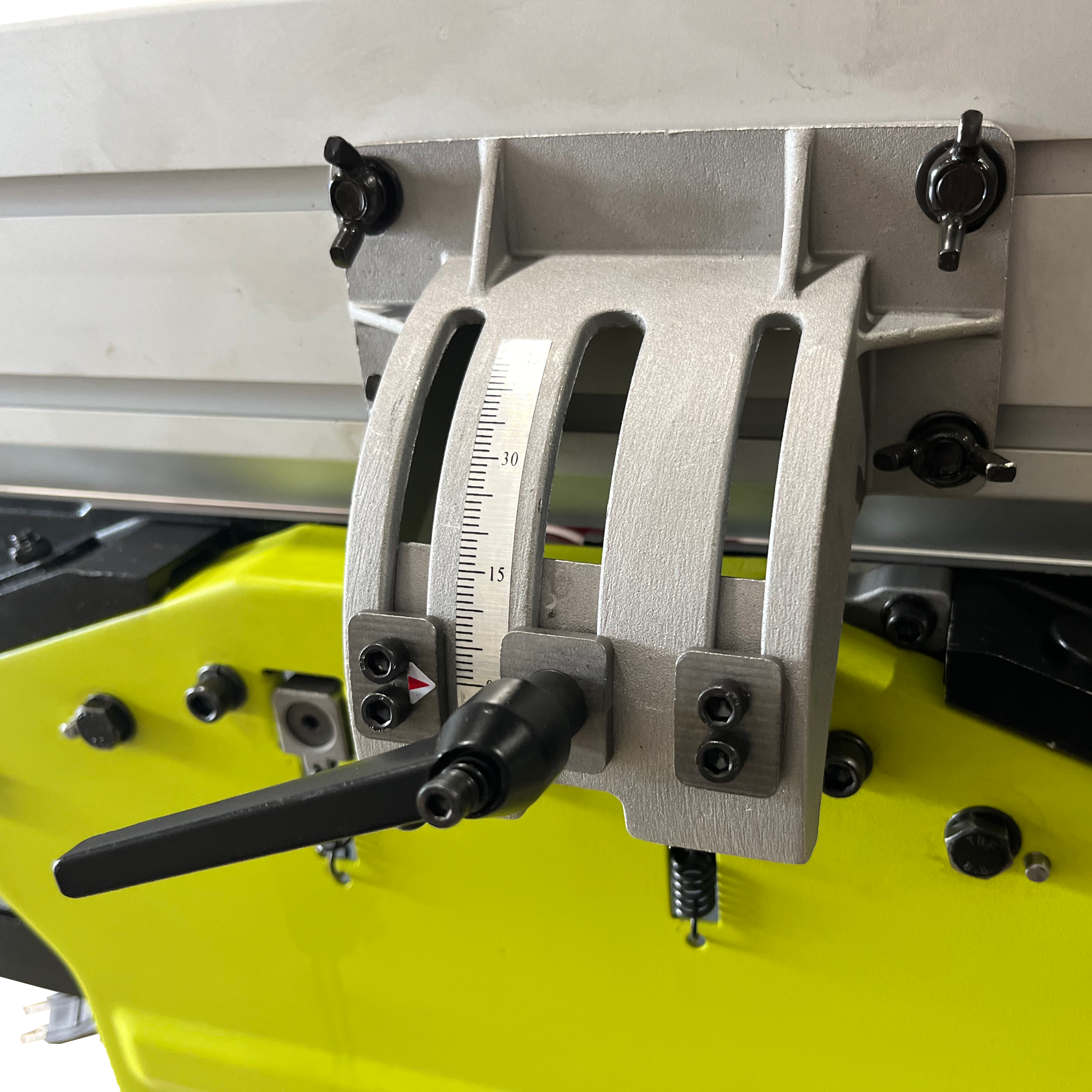

- Adjustable fence for precise angle adjustments (90° to 135°)
- 2-blade system for smooth cutting
- Large working and thicknessing tables
Specification:
| Model |
FORESTWEST Wood Planer Jointer Combo BM10420 |
| Motor |
2.5HP (1,800 W), 110V, 16.4Amps |
| Stock Width (Max.) |
12" |
| Stock Thickness (Max.) |
2mm/1mm |
| Cutting Depth for Planer |
1/4" - 6-1/4" 6-160mm |
| Number of Blades |
2 |
| Speed |
9500 RPM |

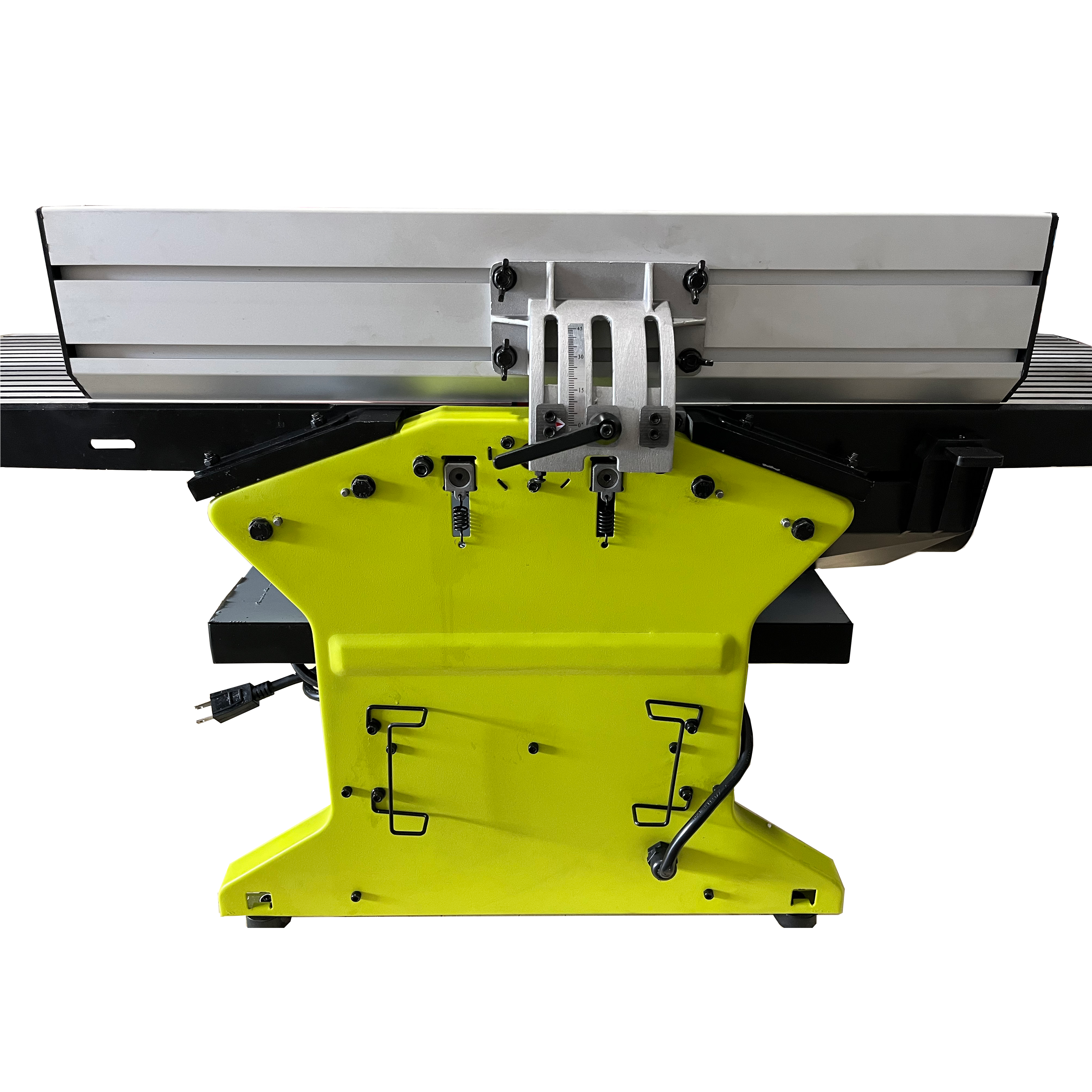

| Fence |
25" x 5-1/4" 635*127mm |
| Fence Angle |
90° - 135° |
| Dust Chute Diameter |
4" |
| Working Table |
42-3/8" x 12" 1075*310mm |
| Planning Table Size |
19 3/4" x 12" 500*305mm |
| Net Weight/ Gross Weight |
100 lbs/ 88 lbs
|
| Packing Size |
47" x 23" x 23" |
| Warranty |
1 Year |
