Description
A great value-for-money extractor for home workshop use. It has a 2HP motor that is rated to flow up to 1,790CFM. The larger motor and 12" impeller create extra capacity making it generally suitable for extraction of a single large dust-volume generating machine at any one time like planing or heavy-duty routing where one of the inlets can be blocked off for maximum suction through one path.
Features:

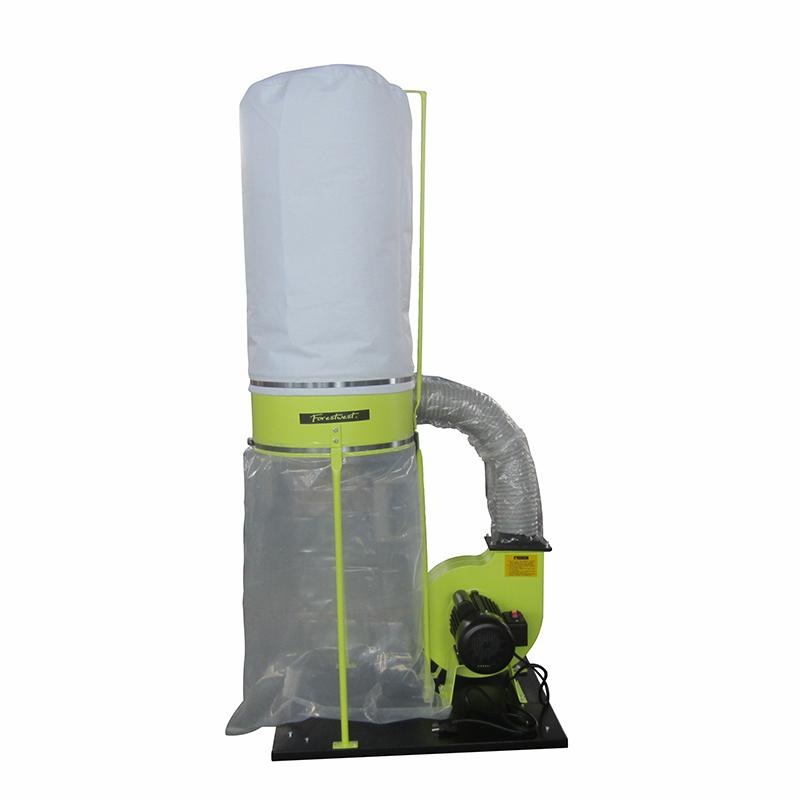

- Two-bag vertical dust collector.

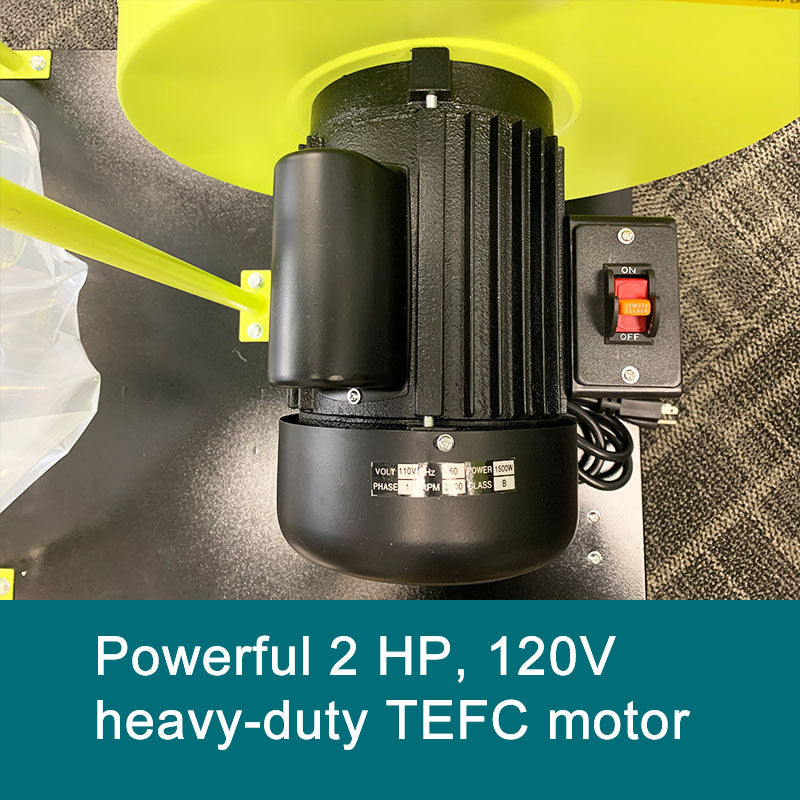

- Powerful 2 HP, 120V heavy-duty TEFC motor and solid construction to effectively handle the collection of wood chips and sawdust.

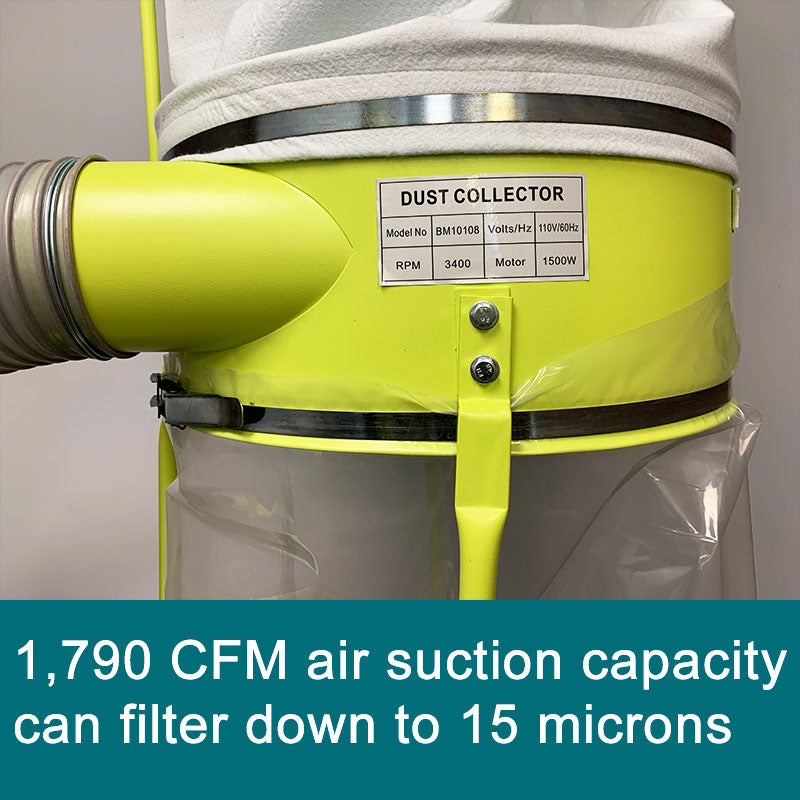

- 1,790 CFM air suction capacity.
- The nylon filter and collection bags which can filter down to 15 microns.

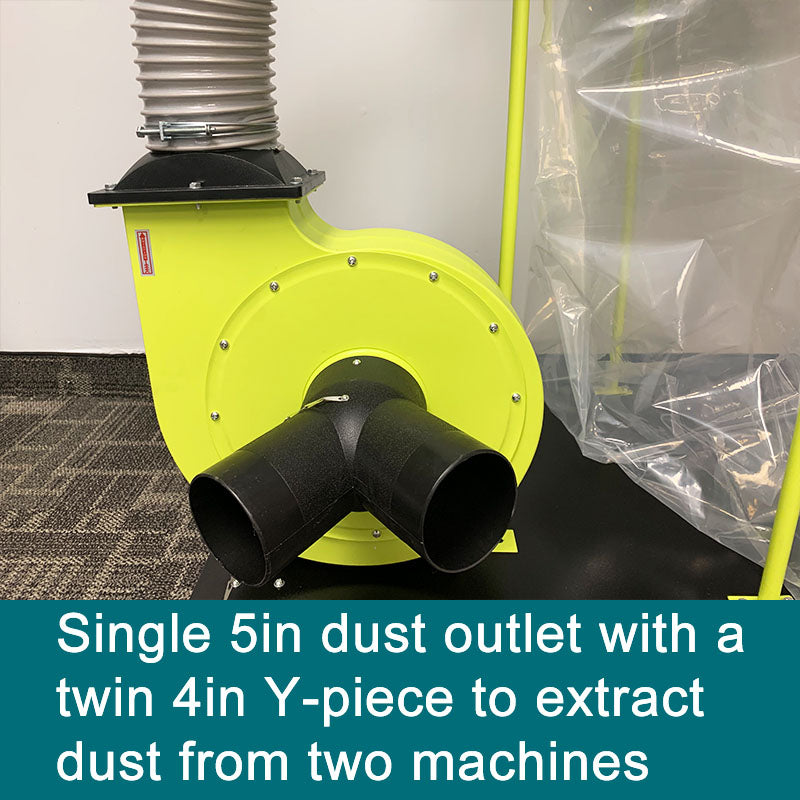

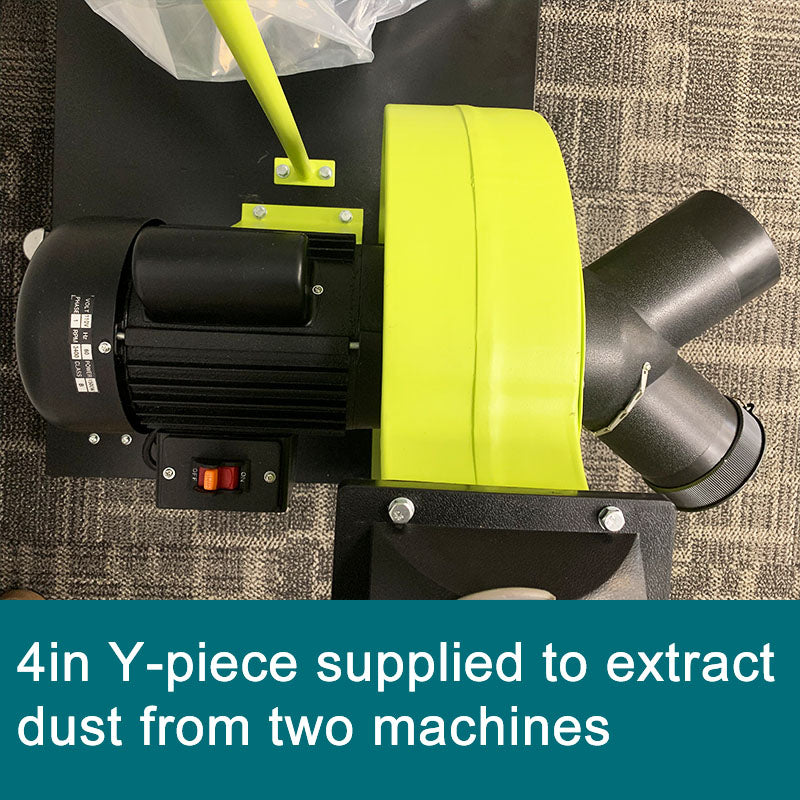

- Single 5in dust outlet with a twin 4in Y-piece supplied to extract dust simultaneously from two machines.
Specifications:
| Model | FORESTWEST 10108 |
| Motor | 2HP, 110V, 13.6Amps, TEFC |
| Air Flow | 1,790CFM |
| Static Pressure (Inch of Water) | 8" |
| Fan Diameter | 12" |
| Inlet Diameter | 1 x 5" with 2 x 4" Y-piece |
| Bag Diameter | 19-3/4" |
| Bag Height | 33-1/2" |
| Bag Capacity | 153L (5.4CF/ 40.4Gal) |
| Net Weight/ Gross Weight | 104 lbs/ 112 lbs |
| Assembled Size | 35" x 21" x 71" |
| Packing Size | 36" x 23" x 23" |
| Warranty | 1 Year |
