Description

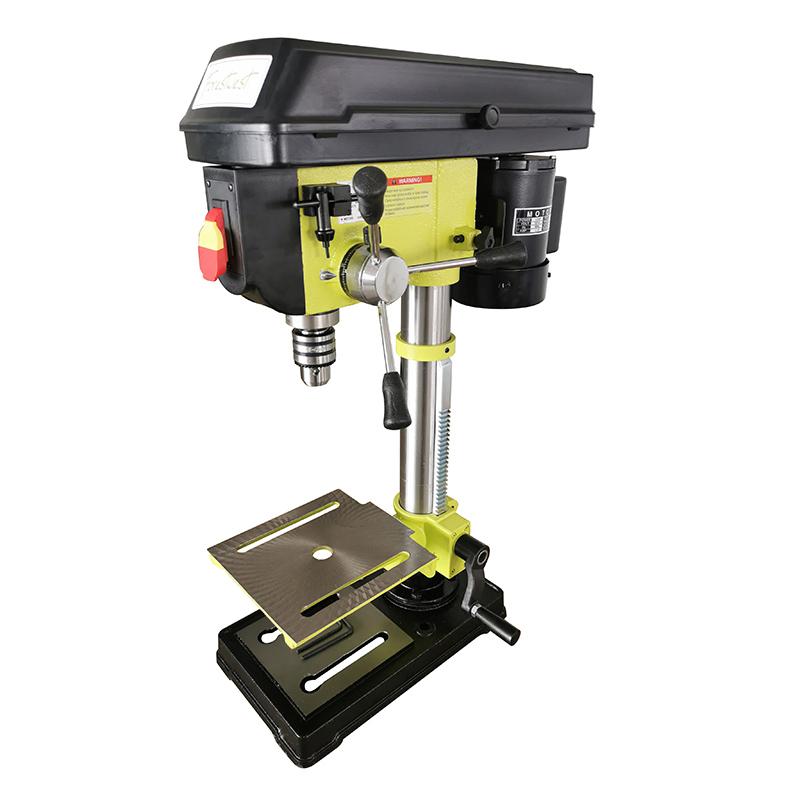

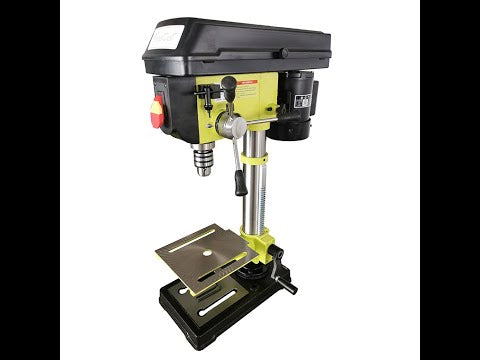

Forestwest's new bench-top drill press is lightweight and hobbyist friendly. The drill press features our global patented cross-pattern precision laser guide system and unique built-in LED work light, it's cost-effective, easy to use, simple to set-up, and incredibly user-friendly. This bench drill press is also purpose-built for the hobbyist end of the spectrum, allowing you to take on the lighter loads of drill pressing - fantastic for small furniture making projects - without the hassle of a large scale, virtually immobile piece of industrial machinery.
10" Bench Drill Press Features:
-

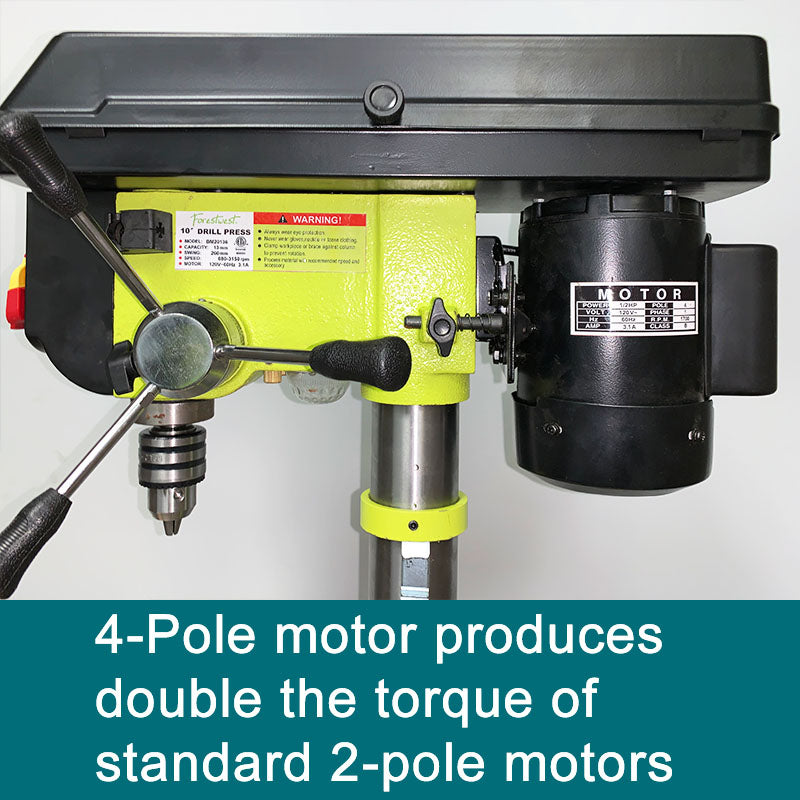

4-Pole motor produces double the torque of standard 2-pole motors.
-
Standard bayonet-style light fitting mounted in the drill head creates improved lighting on the drill press table.
-

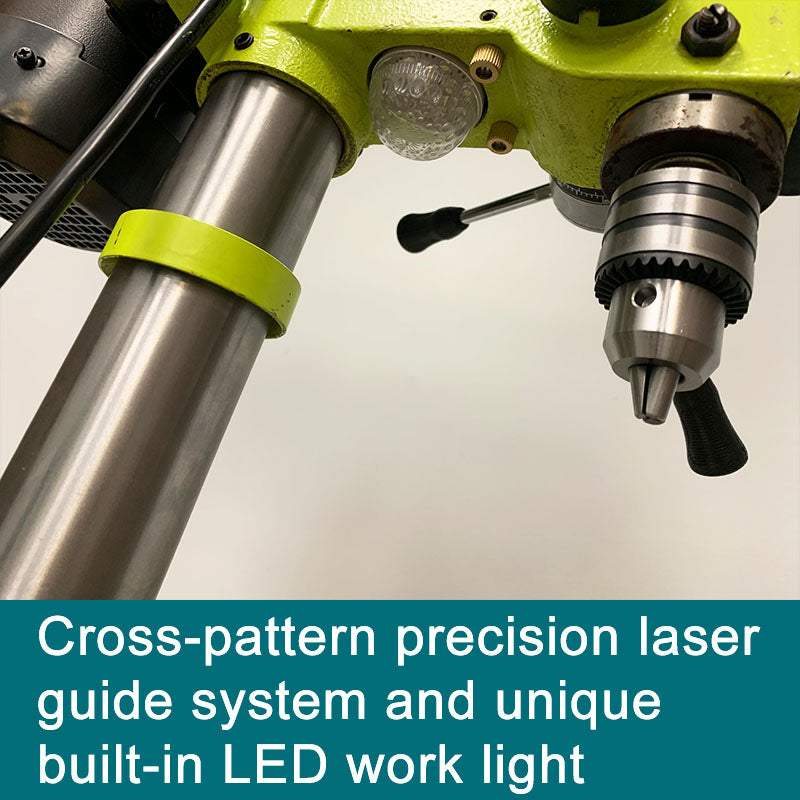

Global patented cross-pattern precision laser light & unique built-in LED work light, Alignment & centering guide.
-

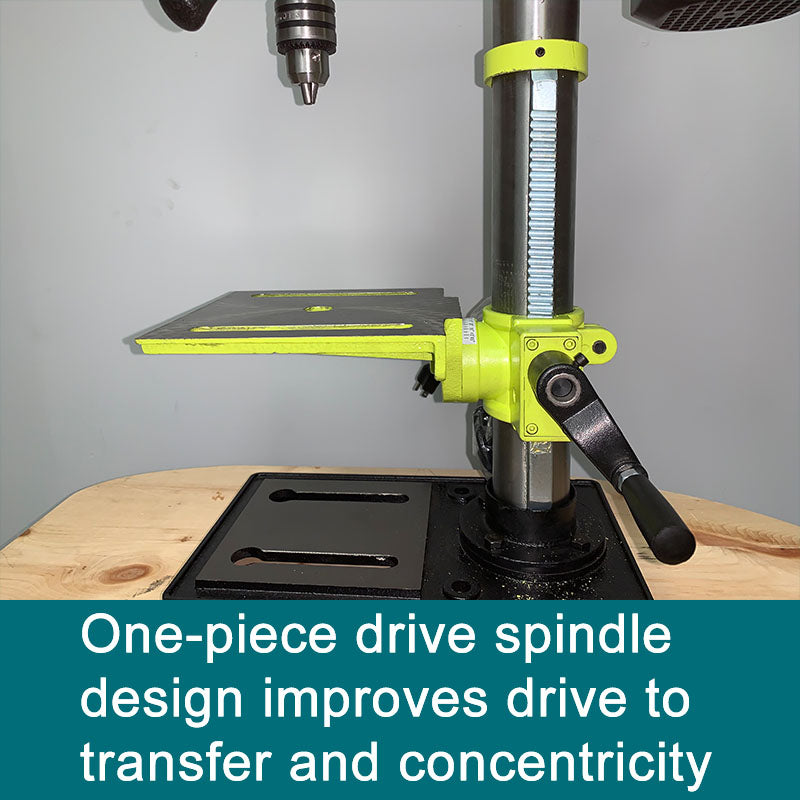

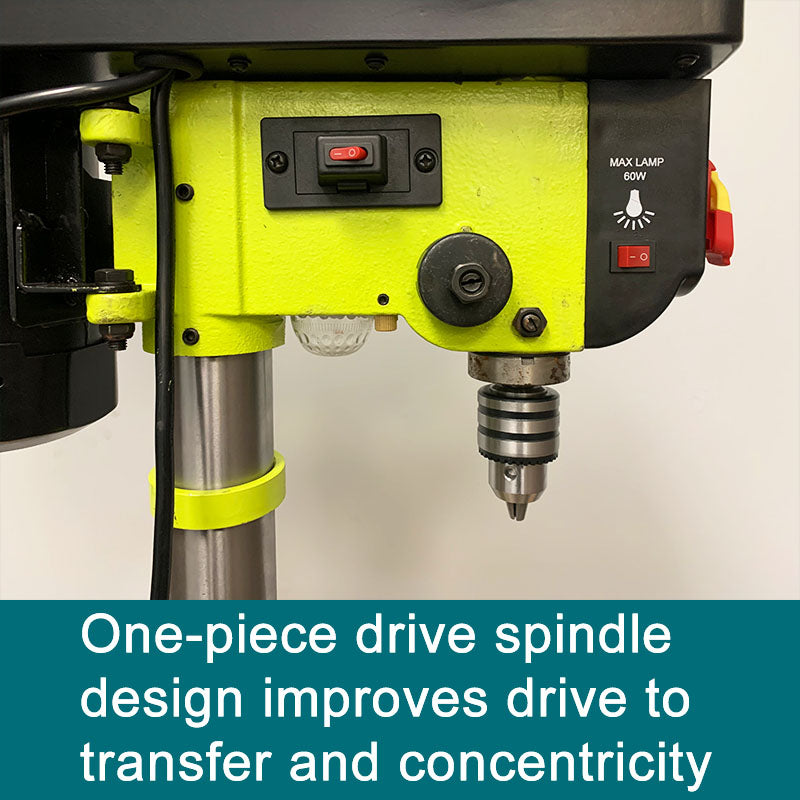

One-piece drive spindle design (instead of using a tapered drill arbor) improves drive to transfer and concentricity.
-

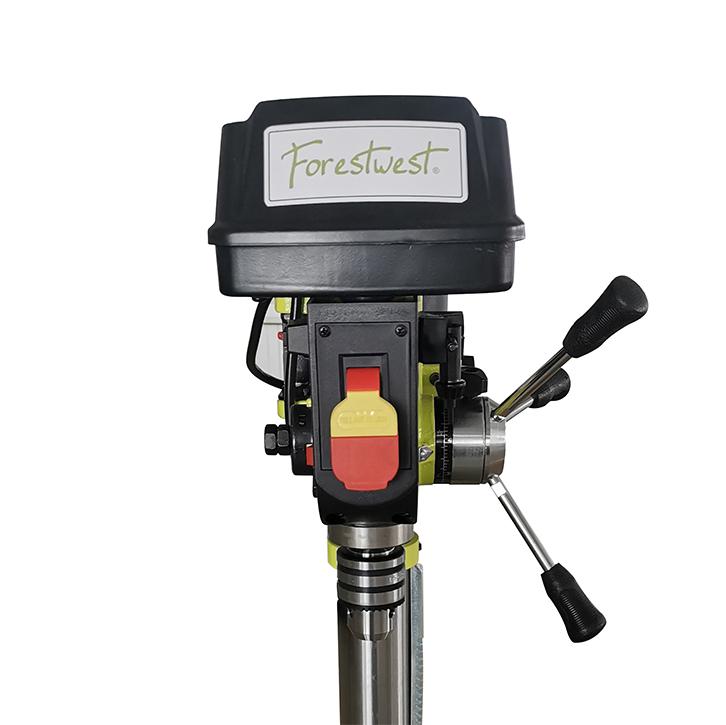

Micro-switch built into pulley cover means it can't be accidentally turned on when changing speeds.
Specifications:
| Model | FORESTWEST BM20136 |
| Motor | 1/2HP (375W), 110V, 3.4Amps |
| Chunk | 1/2" |
| Spindle Travel | 2-1/2" |
| Spindle Taper | B16 |
| Speed Change | 5 |

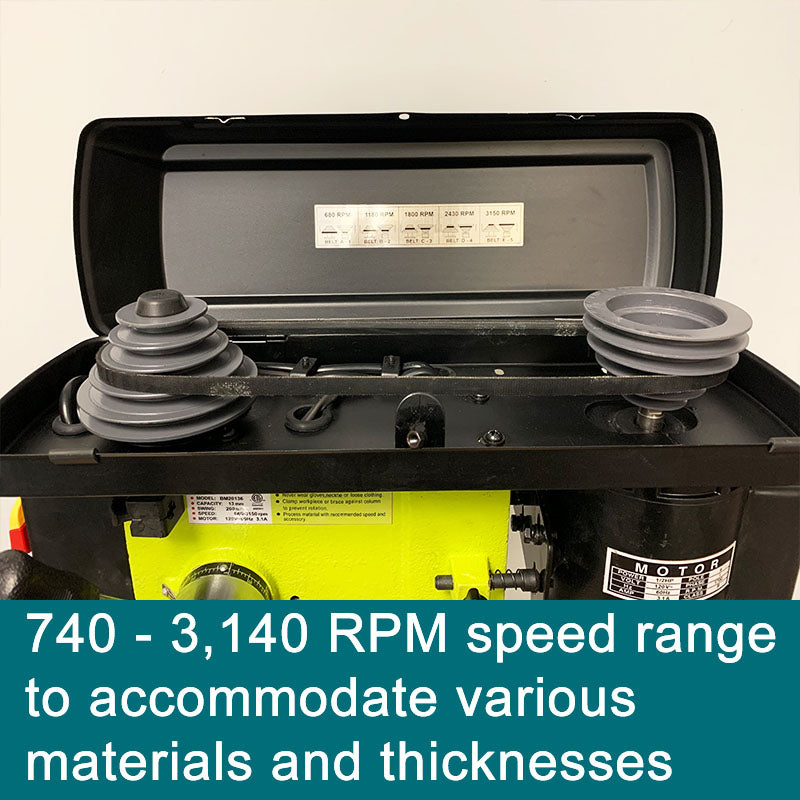

| Spindle Speed | 740-3,140 RPM |
| Swing | 10" |
| Working Table | 7-7/8" x 7-7/8" |
| Base | 13-3/8" x 8-1/4" |
| Column | Ø2-1/4" |
| Total Height | 26-3/4" |
| Net Weight/ Gross Weight | 55 lbs/ 59 lbs |
| Packing Size | 23" x 17" x 11" |
