Description

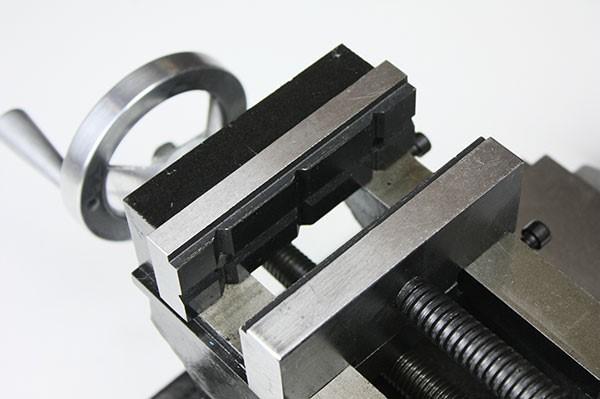

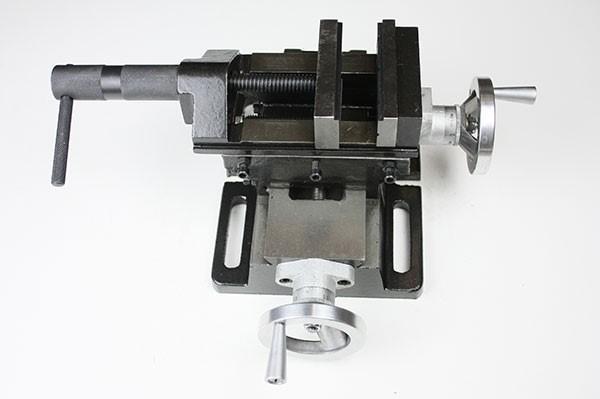

This Forestwest 4" Cross Slide Vise is capable of travelling at two directions. The ja width is 100mm (4"). The cross slide vise can travel 140mm at X-axis, and 80mm at Y-axis. This compound sliding vise is well machined with smooth travel. It is a precision model with positive positioning in two coordinates that lets you move the piece accurately. This is an ideal vise for accurate drilling and milling.
4" Cross Slide Vice Features:
-
A cross slide capability in the X and Y axis, smooth travel.
-
Sturdy construction made of cast iron.
-
Well machined for precision use.
-
Jaw opens up to 98mm with 0.05mm graduation.
Specifications:
| A | B | C | D | E | F |
|---|---|---|---|---|---|
| 218mm | 175mm | 140mm | 105mm | 184mm | 100mm |
| G | H | J | K | X Travel | Y Travel |
| 156mm | 34mm | 85mm | 100mm | 140mm | 80mm |
| Model | FORESTWEST 30110 |
| Jaw Width |
100mm (4") |
| Jaw Opening | 98mm (4") |
| Net Weight/ Gross Weight | 40 lbs/ 42 lbs |
| Packing Size | 18" x 16" x 7" |
| Warranty | 1 Year |
