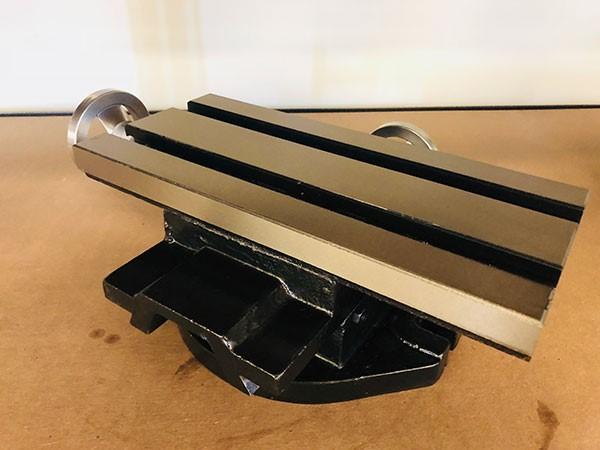

This Forestwest Cross Slide Table has a 300 x 140mm (11-3/4" x 5-1/2") table with 180mm travel on X-axis and 100mm travel on Y-axis. This compound sliding table is well machined and the travel is smooth and accurate. This is a precision model with the dial indexed handle in 0.05mm graduation.
This cross slide table is ideal for repetitive multi-axis work, it will highly reduce the setup time. The construction is sturdy and suitable for heavy-duty work.
Features:
- Sturdy construction for heavy-duty work.
- Precise and smooth slide action, slide range X-180mm x Y-100mm.
- A 300 x 140mm (11-3/4" x 5-1/2") solid table.

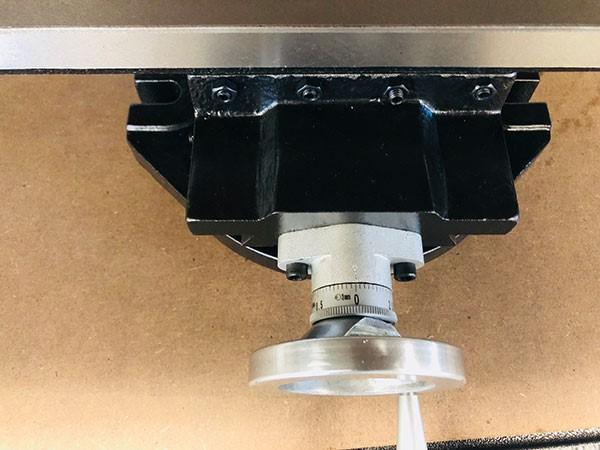

- Accurate sliding with 0.05mm Graduation.

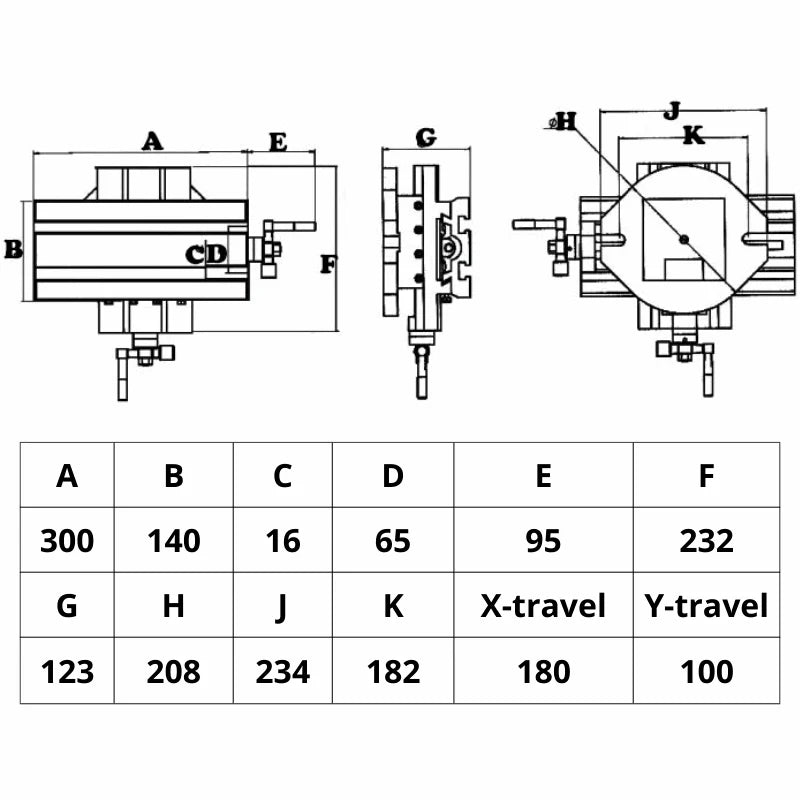

Specifications:
| Model |
FORESTWEST 30272 |
| Table Size |
300 x 140mm (11-3/4" x 5-1/2")
|
| X-travel |
180mm |
| Y-travel |
100mm |
| Graduation |
0.05mm
|
| Net Weight/ Gross Weight |
40 lbs/ 42 lbs |
| Packing Size |
18" x 16" x 7" |
| Warranty |
1 Year |
