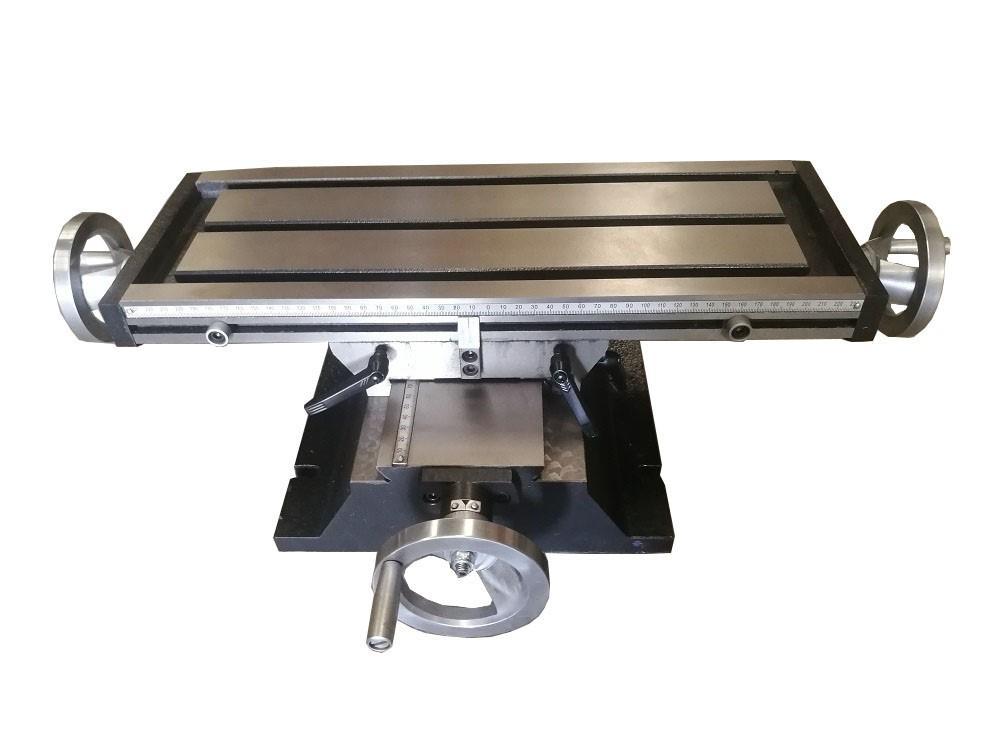

This Forestwest Cross Slide Table has a 500 x 180mm (19-3/4" x 7-1/8") table with 280mm travel on X-axis and 175mm travel on Y-axis. This compound table is well machined, and the travel is smooth and accurate. This is a precision model with the dial indexed handle in 0.05mm graduation.
This cross slide table is ideal for repetitive multi-axis work, it will highly reduce the setup time. The construction is sturdy and suitable for heavy-duty work. Can be used on BF-20 milling head (mounting holes needs drilling).
Features:
- Sturdy construction for heavy-duty work.
- Table Size to be 500 x 180mm (19-3/4" x 7-1/8") with 0.05mm graduation.
- Precise and smooth slide action on Slide Range X-280mm x Y-175mm.
- Ideal use on milling machine and lathe.

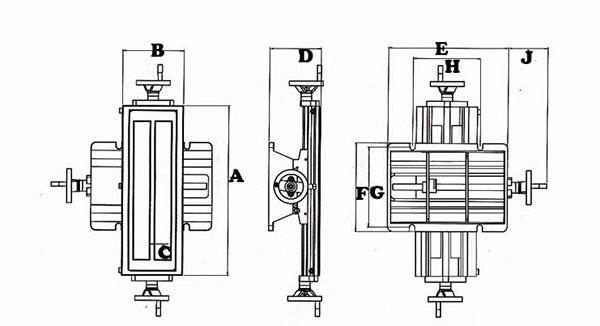

Specifications:
A
|
B
|
C
|
D
|
E
|
F
|
500mm
|
180mm
|
12mm
|
151mm
|
355mm
|
260mm
|
G
|
H
|
J
|
|
X Travel
|
Y Travel
|
235mm
|
200mm
|
116mm
|
|
280mm
|
175mm
|
Model |
FORESTWEST 30277 |
Net Weight/ Gross Weight |
77 lbs/ 93 lbs |
Packing Size |
26" x 17" x 7" |
Warranty |
1 Year |
