Gear Shaft (pinion)

FORESTWESTSKU: BM11056#49

Gear Shaft Pinion: 10 Ton
Price:
Sale price$99.00
Stock:
In stock

Estimate shipping

Description

Description

Important: After replacing a new pinion, test if the rack and pinion are engaging properly before use the machine.

Here is how: manually pull the rack out a bit and use the handle to engage the rack and pinion, then press the rack further down, there should be no or very little gap between the rack and pinion.

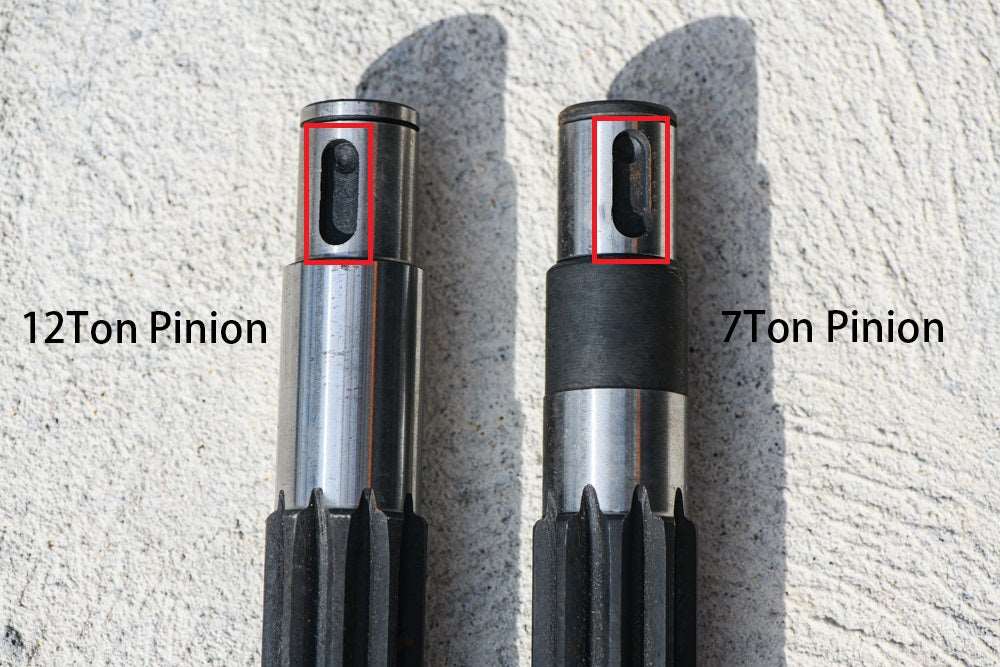

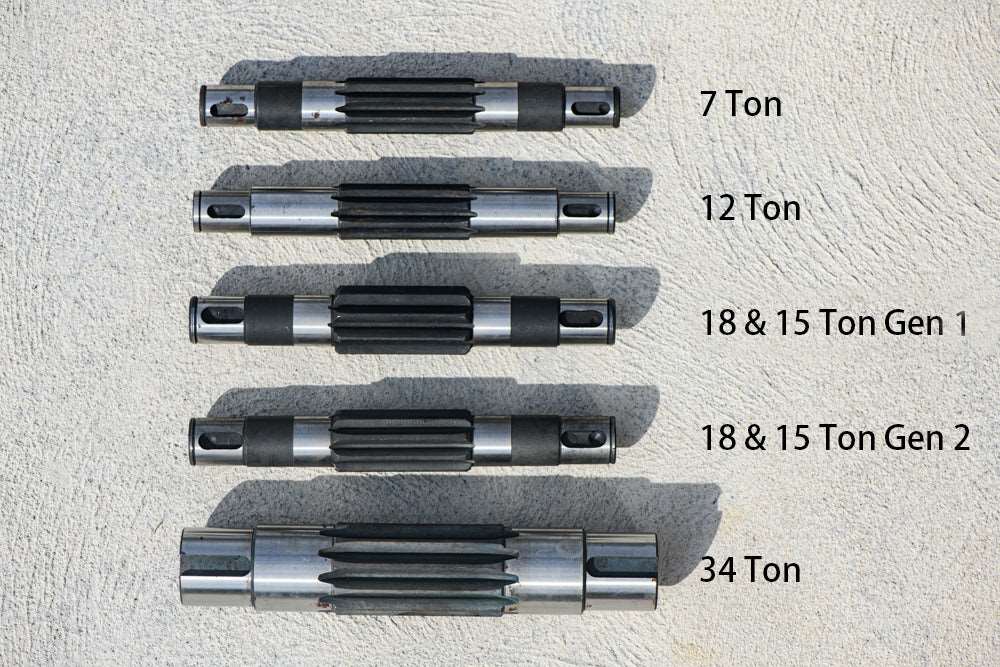

Pinion for Forestwest Kinetic Log Splitter, please refer to images for detail.

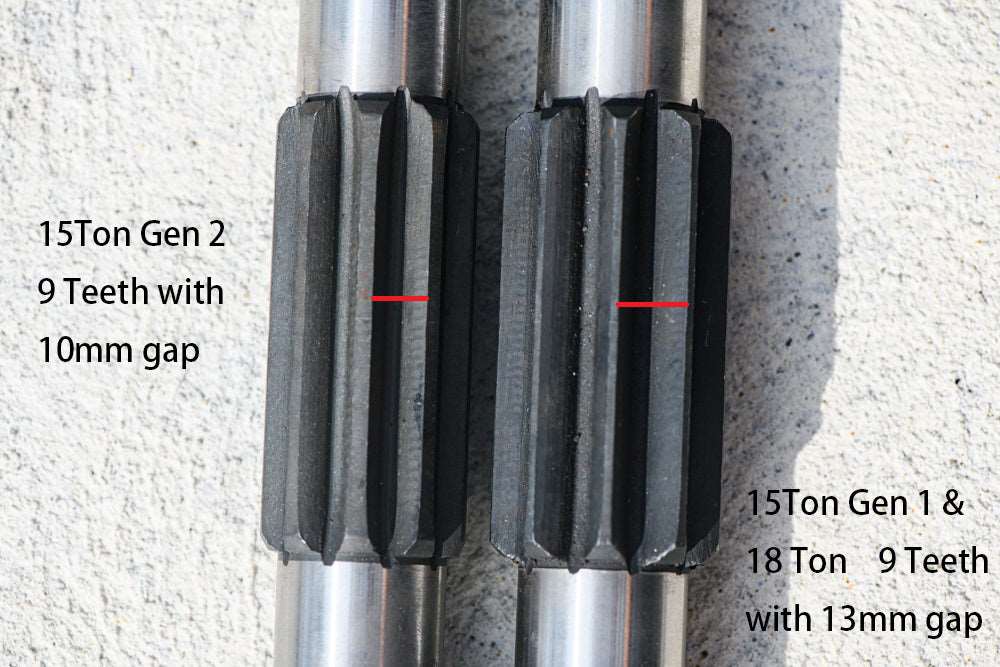

How to choose 15 & 18 Ton Pinion Gen 1 and Gen 2:

Please measure your current rack and compare to the following specification to choose the right pinion

Rack and Pinion must in matching generation, mixture use of those parts could damage the machine.

   15&18 Ton Rack Gen 1  15&18 Ton Rack Gen 2

Overall Length

630mm 630mm

Bolt Hole to Teeth

165mm 160mm

Spring Hole to Teeth

14mm 9mm

Suitable Pinion

   15&18 Ton Pinion Gen 1   15&18 Ton Pinion Gen 2





Above log splitter parts are only suitable for Forestwest Kinetic Log Splitter

Contact Forestwest for any other log splitter parts or other inquiry.
