Description

Description

Important: After replacing a new rack, test if the rack and pinion are engaging properly before use the machine.

Here is how: manually pull the rack out a bit and use the handle to engage the rack and pinion, then press the rack further down, there should be no or very little gap between the rack and pinion.

Rack for Forestwest Kinetic Log Splitter, please refer to images for detail.

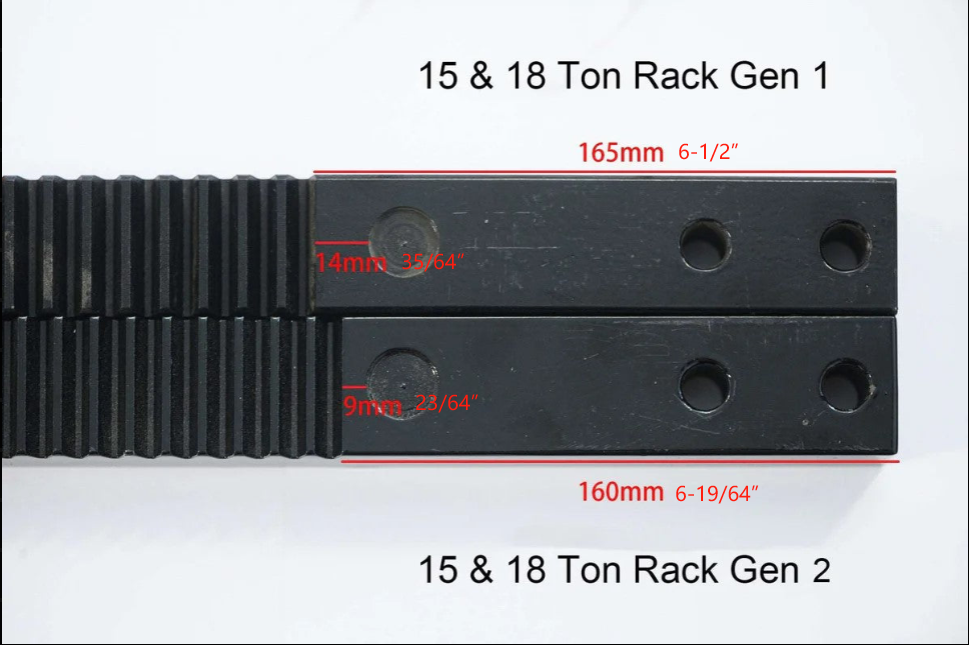

* Special note:  How to choose 15 & 18 Ton Rack Gen 1 and Gen 2:

Please measure your current rack and compare to the following specification to choose the right size

Rack and Pinion must in matching generation, mixture use of those parts could damage the machine.

(inch)    15&18 Ton Rack Gen 1  15&18 Ton Rack Gen 2

Overall Length

         24 ⁵¹/₆₄                24 ⁵¹/₆₄
Bolt Hole to Teeth            6 ¹/₂                 6 ¹⁹/₆₄

Spring Hole to Teeth

              ³⁵/₆₄                    ²³/₆₄

other measurement

       10ton         12ton       15/18ton        34ton
Full length      22- 5/16"       22-5/16"        24-3/4"        35-3/8"
Width       15/16"      1-9/16"        1-9/16"        1-15/16"
Weight          8 lbs         11 lbs             12 lbs           25 lbs
